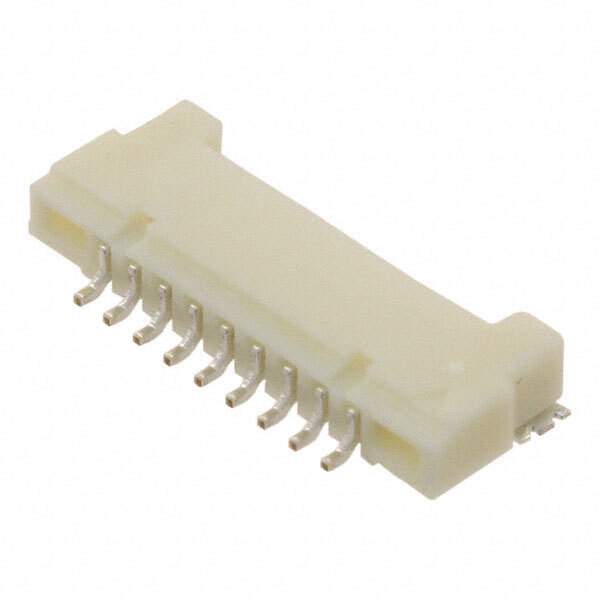

The Hirose Electric Co Ltd DF14A-9P-1.25H(26) is a 9-position male pin header connector that features a push-pull fastening type and a shrouded 4-wall design.

• Number of Positions: 9
• Fastening Type: Push-Pull
• Design: Shrouded 4-Wall
• Connector Type: Header
• Contact Type: Male Pin
• Positions Loaded: All Positions
• Number of Rows: Single
• Termination: Solder
• Contact Material: Brass
• Voltage Rating: 150V
• Current Rating: 1A
• Insulation Material: Polyamide (PA) and Nylon
• Insulation Height: 0.098" (2.50mm)
• Contact Shape: Square
• Mating Pitch: 0.049" (1.25mm)
• Contact Finish: Tin-Copper
• Contact Finish Thickness: 39.4µin (1.00µm)
• Application: Board to Cable/Wire
• Operating Temperature: -35°C to 85°C
• Supplier: Hirose Electric Co Ltd
