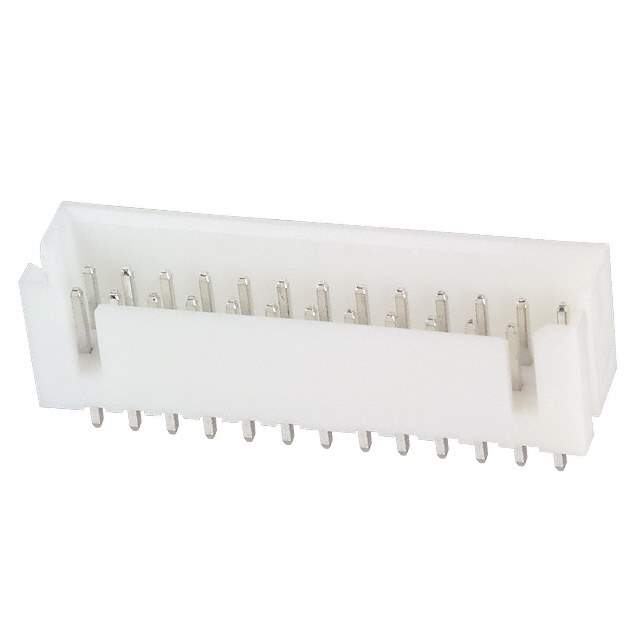

DF1BZ-26DP-2.5DSA Real Image
Same model may have multiple batches, images only for reference.

DF1BZ-26DP-2.5DSA

Part No DF1BZ-26DP-2.5DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 2.5MM / Connector Header Through Hole 26 position 0.098" (2.50mm)
Datasheet
DF1BZ-26DP-2.5DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Voltage Rating 250V
Mated Stacking Heights 14mm
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names DF1BZ26DP25DSA,H11053,541-2028-7-00,*DF1BZ-26DP-2.5DSA
Standard Package 100
Win Source Part Number 1210506-DF1BZ-26DP-2.5DSA
Ultra Librarian 3D Model Ultra Librarian DF1BZ-26DP-2.5DSA CAD Model

Description

The 1210506-DF1BZ-26DP-2.5DSA is a 26-position rectangular connector header with male pins from Hirose Electric Co Ltd.

  • Pitch: 0.098" (2.50mm)
  • Features: Keying Slot, Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Contact Finish: Tin
  • RoHS: Compliant
  • Packaging: Bulk
  • Standard Package: 100
  • Number of Rows: 2
  • Mated Stacking Heights: 14mm
  • Insulation Material: Polyamide (PA), Nylon
  • Flammability Rating: UL94 V-0
