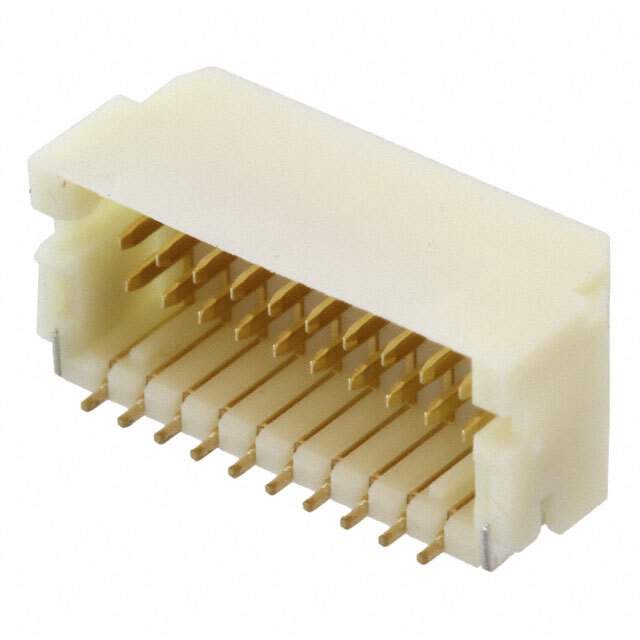

DF20F-20DP-1H(50) Real Image
Same model may have multiple batches, images only for reference.

DF20F-20DP-1H(50)

Part No DF20F-20DP-1H(50)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 20POS 1MM / Connector Header Surface Mount, Right Angle 20 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF20
Package Tube
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 100V
Contact Finish Thickness - Post Flash
Standard Package 38
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337918-DF20F-20DP-1H(50)
Ultra Librarian 3D Model Ultra Librarian DF20F-20DP-1H(50) CAD Model

Description

The Hirose Electric Co Ltd DF20F-20DP-1H(50) is a rectangular connector header with male pins.

  • Connector Type: Rectangular Connector Header
  • Pin Type: Male
  • Positions Loaded: 20
  • Pitch: 0.039 inches
  • Mounting Type: Surface-Mount, Right-Angle
  • Type: Shrouded-4 Wall
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 8.00µin (0.203µm)
  • Contact Finish Thickness (Post): Flash
  • Current Rating: 1A
  • Voltage Rating: 100V
  • Contact Type: Male Pin
  • Packaging: Tube
  • Standard Package: 38
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Status: Obsolete
