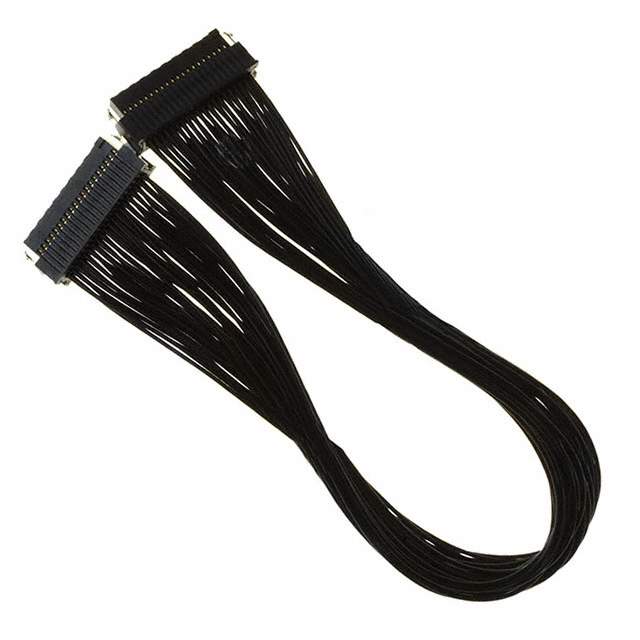

SFSD-20-28-H-10.00-DR-NUX Real Image
Same model may have multiple batches, images only for reference.

SFSD-20-28-H-10.00-DR-NUX

Part No SFSD-20-28-H-10.00-DR-NUX
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-20-28-H-10.00-DR-NUX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Socket
Number of Positions 40
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 0.833' (254.00mm, 10.00")
Features Latch Lock, Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-20
Other Names SAM8696
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1310017-SFSD-20-28-H-10.00-DR-NUX
Ultra Librarian 3D Model Ultra Librarian SFSD-20-28-H-10.00-DR-NUX CAD Model

Description

The Tiger Eye™ SFSD rectangular cable assembly is a high-quality, latch-lock, socket-to-socket connector designed for use in electronic equipment.

  • Positions: 40 positions
  • Contact Finish: gold contact finish
  • Features: polarizing key ensures proper alignment during mating
  • Cable Termination: crimped
  • Cable Length: 0.833 feet
  • Shielding: unshielded
  • Packaging: bulk packaging of 1 unit
  • Connector Pitch: 0.050 inches (1.27mm)
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Manufacturer: Samtec Inc.
  • Model: SFSD-20 is a high-performance cable assembly that is ideal for use in demanding applications
