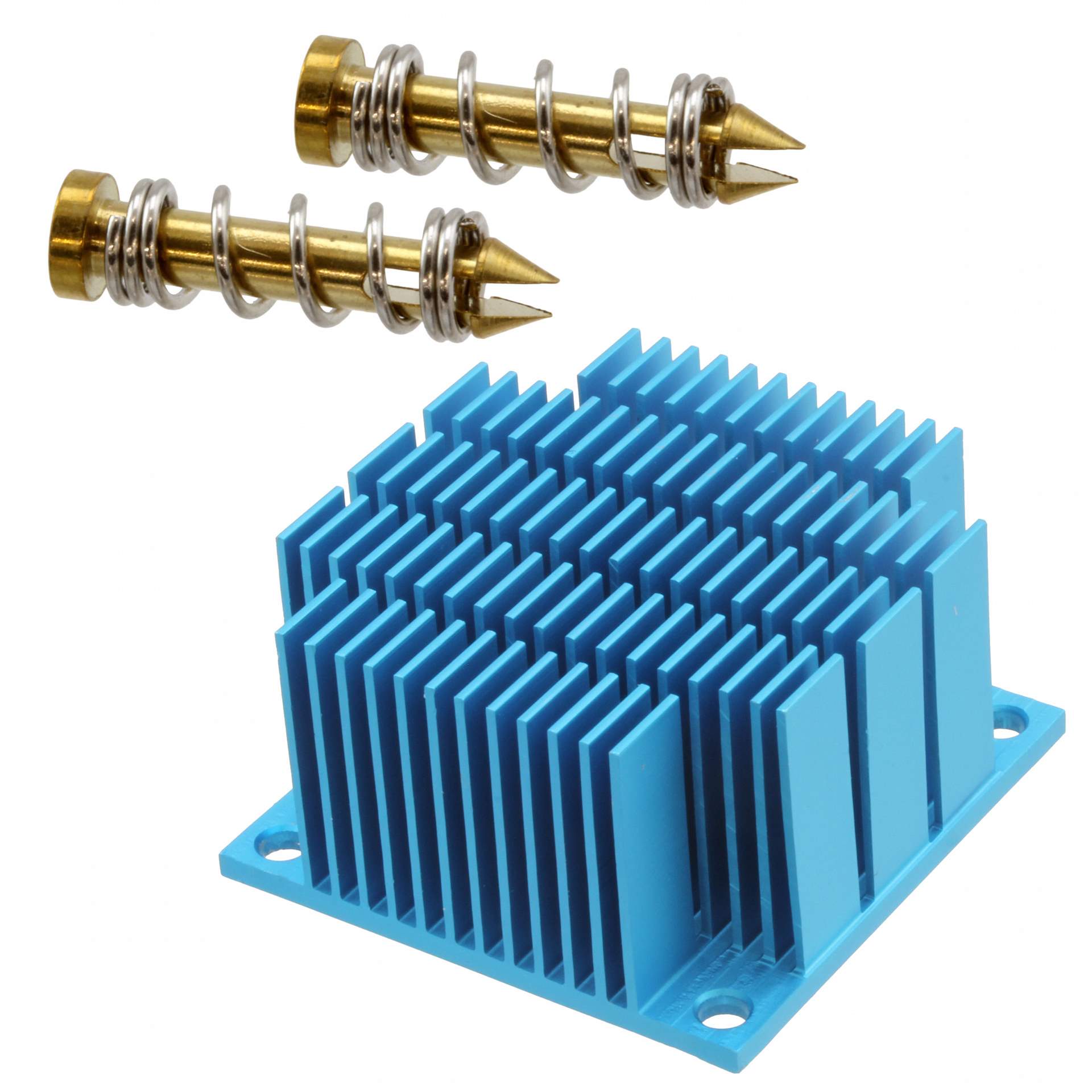

ATS-20C-100-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-20C-100-C1-R0

Part No ATS-20C-100-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 45X45X25MM R-TAB / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-20C-100-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Bulk
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 1.772" (45.00mm)
Width 1.772" (45.00mm)
Fin Height 0.984" (25.00mm)
Thermal Resistance @ Forced Air Flow 8.69°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-20C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Standard Package 100
Win Source Part Number 1188696-ATS-20C-100-C1-R0
Ultra Librarian 3D Model Ultra Librarian ATS-20C-100-C1-R0 CAD Model

Description

The ATS-20C-100-C1-R0 pushPIN heat sink by Advanced Thermal Solutions is a top mount type heat sink that is perfect for use with assorted packages such as BGA, LGA, CPU, ASIC, and more.

  • Mounting Type: Top Mount
  • Suitable Packages: BGA, LGA, CPU, ASIC
  • Thermal Resistance: 8.69°C/W @ 100 LFM
  • Fin Height: 0.984" (25.00mm)
  • Material: Aluminum
  • Finish: Blue Anodized
  • Packaging: Bulk
  • Length: 1.772" (45.00mm)
  • Width: 1.772" (45.00mm)
  • Attachment Method: Push Pin
