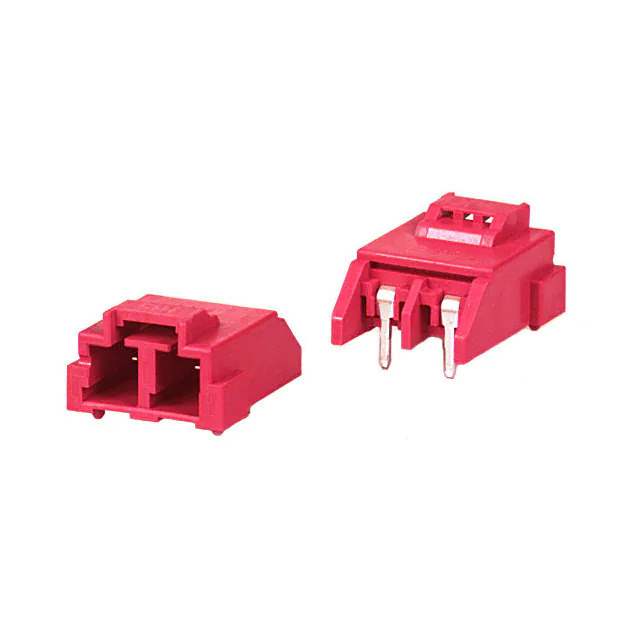

DF22L-2P-7.92DS(05) Real Image
Same model may have multiple batches, images only for reference.

DF22L-2P-7.92DS(05)

Part No DF22L-2P-7.92DS(05)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 7.92MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series EnerBee™ DF22
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.312" (7.92mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.354" (9.00mm)
Contact Length - Post 0.146" (3.70mm)
Insulation Height 0.480" (12.20mm)
Contact Shape Square
Contact Finish - Mating Tin-Copper
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Red
Current Rating (Amps) 25A
Voltage Rating 1000V
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856502-DF22L-2P-7.92DS(05)
Ultra Librarian 3D Model Ultra Librarian DF22L-2P-7.92DS(05) CAD Model

Description

The EnerBee™ DF22 series from Hirose Electric Co Ltd is a range of rectangular connectors designed for various applications in the electronics industry. The DF22 series features a 2-position header connector with male pins and a solder termination.

  • Series: EnerBee™ DF22
  • Positions: 2
  • Type: header connector
  • Pins: male
  • Termination: solder
  • Voltage Rating: 1000V
  • Current Rating: 25A
  • Material: copper alloy
  • Finish: tin-copper
  • Pitch: 0.312" (7.92mm)
  • Application: board-to-cable or board-to-wire
  • Fastening: latch holder
  • Shrouding: shrouded 4-wall
  • Flammability Rating: UL94 V-0
  • Temperature Range: -35°C to 85°C
  • Packaging: bulk
  • Pieces per package: 100
