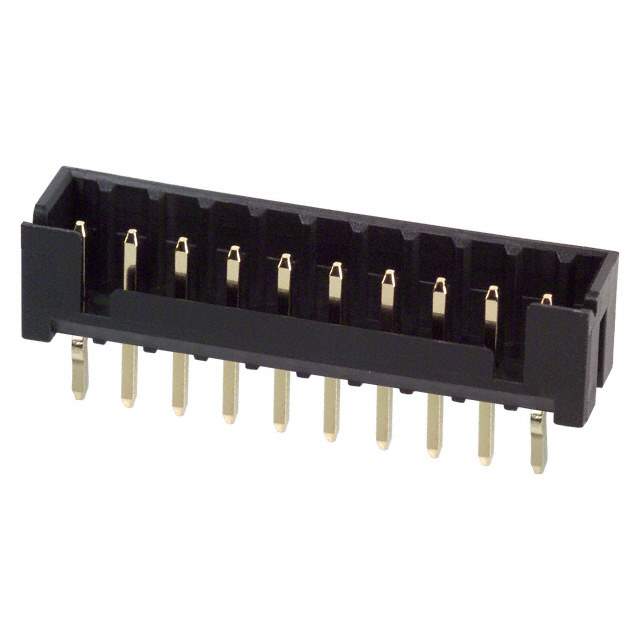

Same model may have multiple batches, images only for reference.

DF3-10P-2DSA(01)

Name: DF3-10P-2DSA(01)
Brand: Hirose Electric Co Ltd
SKU: 1332820
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF3-10P-2DSA(01)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Datasheet	DF3-10P-2DSA(01) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.122" (3.10mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.299" (7.60mm)
Insulation Height	0.197" (5.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	DF3-10P
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	DF310P2DSA01,543-0025-0-01,H3929,*DF3-10P-2DSA(01)
Standard Package	100
Win Source Part Number	1332820-DF3-10P-2DSA(01)
Ultra Librarian 3D Model	Ultra Librarian DF3-10P-2DSA(01) CAD Model

Alternative Products

Description

The DF3-10P-2DSA(01) is a rectangular connector manufactured by Hirose Electric Co Ltd.

Manufacturer: Hirose Electric Co Ltd
Connector Type: Male pin header
Positions: 10
Package: Bulk
Connector Type: Header
Contact Type: Male pin
Loaded: All positions
Rows: Single
Termination: Press-fit and solder
Contact Material: Brass
Contact Finish: Gold
Insulation Material: Polyamide (PA), nylon
Insulation Color: Black
Feature: Shrouded-4 wall
Contact Shape: Square
Temperature Range: -55°C to 105°C
