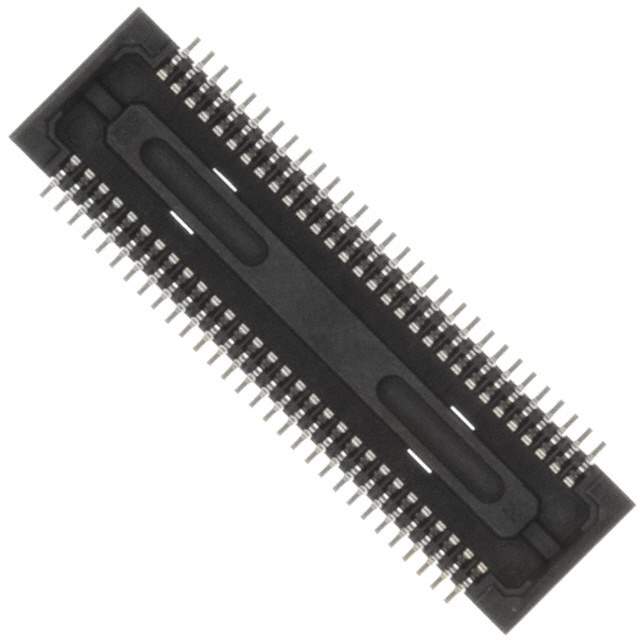

DF30FB-60DS-0.4V(81) Real Image
Same model may have multiple batches, images only for reference.

DF30FB-60DS-0.4V(81)

Part No DF30FB-60DS-0.4V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 60POS SMD GOLD / 60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF30
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.9mm
Height Above Board 0.035" (0.88mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 684-1105-7-81
Standard Package 5,000
Win Source Part Number 1139842-DF30FB-60DS-0.4V(81)
Ultra Librarian 3D Model Ultra Librarian DF30FB-60DS-0.4V(81) CAD Model

Description

The Hirose Electric Co Ltd DF30FB-60DS-0.4V(81) Receptacle, Outer Shroud Contacts is a connector type that features 60 positions and a pitch of 0.016" (0.40mm).

  • Positions: 60
  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.035" (0.88mm)
  • Mounting: SMD (SMT)
  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Series: DF30
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00µin (0.051µm)
  • Solder Retention: Yes
  • Number of Rows: 2
  • Mated Stacking Height: 0.9mm
