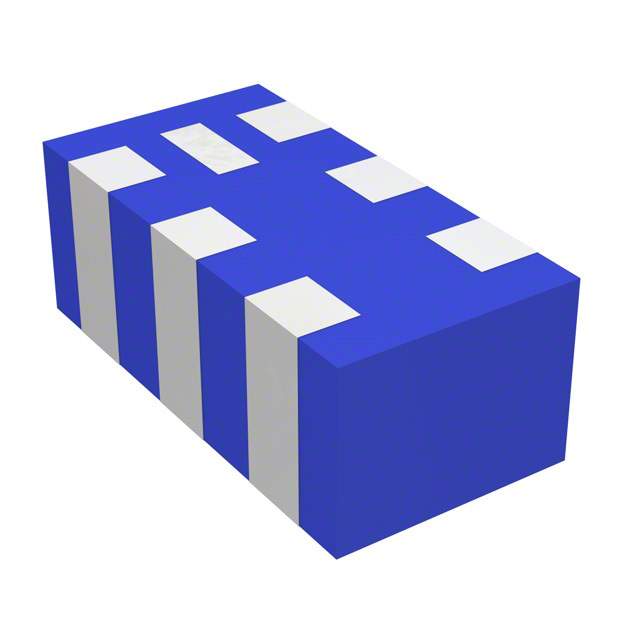

Same model may have multiple batches, images only for reference.

RFDIP1608060L0T

Name: RFDIP1608060L0T
Brand: Walsin Technology Corporation
SKU: 1135506
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RFDIP1608060L0T
Manufacturer	Walsin Technology Corporation
Catalog	RF Multiplexers
Description	RF DIPLEXER 2.45GHZ/5.4GHZ 0603 / RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz 0603 (1608 Metric), 6 PC Pad
Datasheet	RFDIP1608060L0T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF/IF and RFID>RF Multiplexers
Mfr	Walsin Technology Corporation
Series	RFDIP
Package	Tape & Reel
Product Status	Obsolete
Type	Diplexer
Frequency Bands (Low / High)	2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz
Low Band Attenuation (min / max dB)	18.00dB / -
High Band Attenuation (min / max dB)	20.00dB / -
Mounting	SMD (SMT)
Package / Case	0603 (1608 Metric), 6 PC Pad
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	1292-1031-2,1292-1031-1,1292-1031-6
Standard Package	4,000
Win Source Part Number	1135506-RFDIP1608060L0T
Ultra Librarian 3D Model	Ultra Librarian RFDIP1608060L0T CAD Model

Alternative Products

Description

This RF multiplexer diplexer from Walsin Technology Corporation has a Win Source Part Number of 1135506-RFDIP1608060L0T.

Mounting Type: Surface Mount
Package: Tape & Reel
Standard Package: 4,000 units
Package/Case: 0603 (1608 Metric), 6 PC Pad
Frequency Bands: 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz
Low Band Attenuation: 18.00dB / -
High Band Attenuation: 20.00dB / -
REACH: Unaffected
HTSUS: 8504.50.8000
Status: Obsolete
