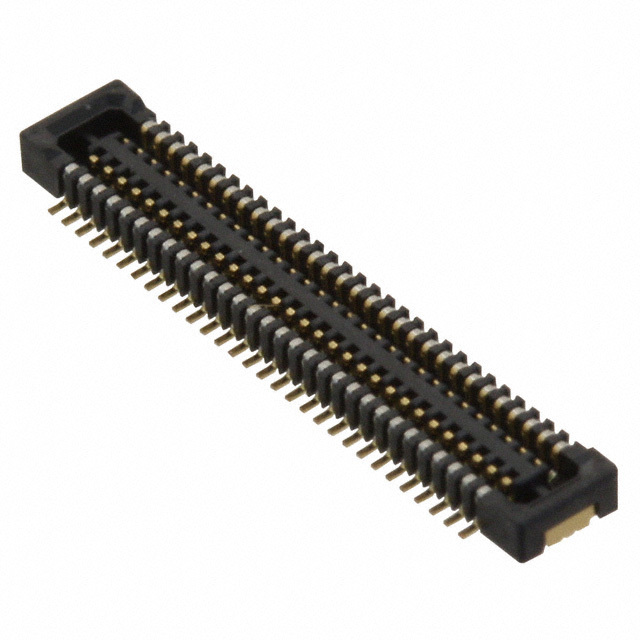

DF37B-60DP-0.4V(53)

Part No DF37B-60DP-0.4V(53)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN HDR 60POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.98mm
Height Above Board 0.030\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1614021-DF37B-60DP-0.4V(53)
Ultra Librarian 3D Model Ultra Librarian DF37B-60DP-0.4V(53) CAD Model

Description

DF37B-60DP-0.4V(53) from Hirose Electric Co Ltd is a fine-pitch board-to-board mezzanine connector designed for compact electronic assemblies where low profile, reliable contact performance, and dense signal routing are important. With a 0.40 mm pitch, 60 positions, dual-row layout, surface-mount termination, and gold contact finish, it is well suited for handheld devices, industrial control boards, embedded modules, medical electronics, and other space-constrained designs that require stable interconnects between stacked PCBs. The outer shroud contact structure and solder retention feature support assembly reliability in automated production environments. Based on its connector category, this type of interconnect is commonly selected for long-life platform designs, but the current lifecycle status for this exact part is information not available, so engineers should confirm with Hirose or current channel data before locking it into new programs. RoHS compliance information is also not available in the provided specifications and should be verified through the official datasheet or manufacturer compliance documentation.
