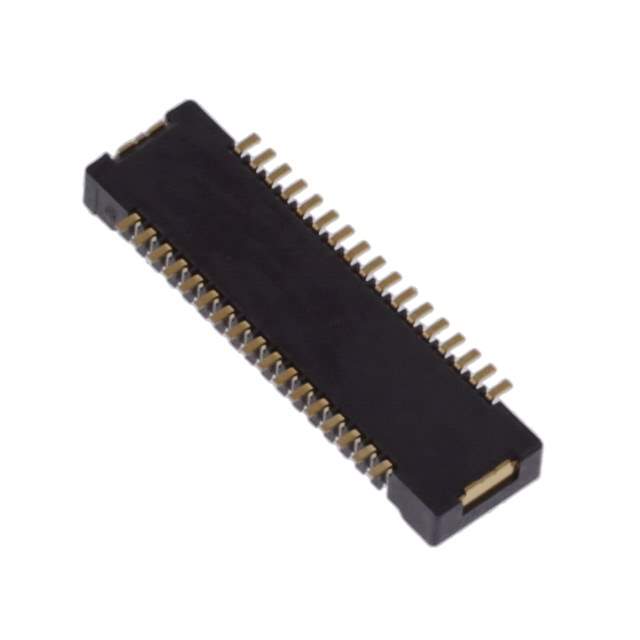

DF37NB-34DS-0.4V(51)

Part No DF37NB-34DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 34POS SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 34 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Manufacturer Hirose Electric Co Ltd
Series DF37
Package Reel - TR
Mounting Surface Mount
Family Name DF37N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 684-3082-4-51, DF37NB-34DS-0.4V(51)-ND, H125769DKR, H125769TR, H125769CT
Quantity per package 8000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868539-DF37NB-34DS-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian DF37NB-34DS-0.4V(51) CAD Model

Description

DF37NB-34DS-0.4V(51) from Hirose Electric Co Ltd is a rectangular connector receptacle in the DF37 family designed for compact, surface-mount interconnect applications. With 34 positions and gold contacts, it is suited to space-constrained electronic assemblies where reliable board-level signal connection and automated reel packaging are important. Typical use cases include portable devices, industrial control electronics, communication modules, embedded systems, and other high-density designs that benefit from fine-pitch connector platforms. From a sourcing perspective, this part appears positioned for OEM and EMS production environments, supported by tape-and-reel packaging and an MSL 1 rating that simplifies storage handling. Engineers evaluating long-term use should note that the listed lifecycle status is unknown, while supply and demand is marked limited and estimated production lead time is 25 weeks, so forward planning is advisable. RoHS compliance information is not explicitly provided in the supplied specifications. Because this product falls within the connectors and interconnects category, RoHS conformity may be expected in many markets, but engineers should verify current compliance directly with Hirose documentation or authorized channel data before release.
