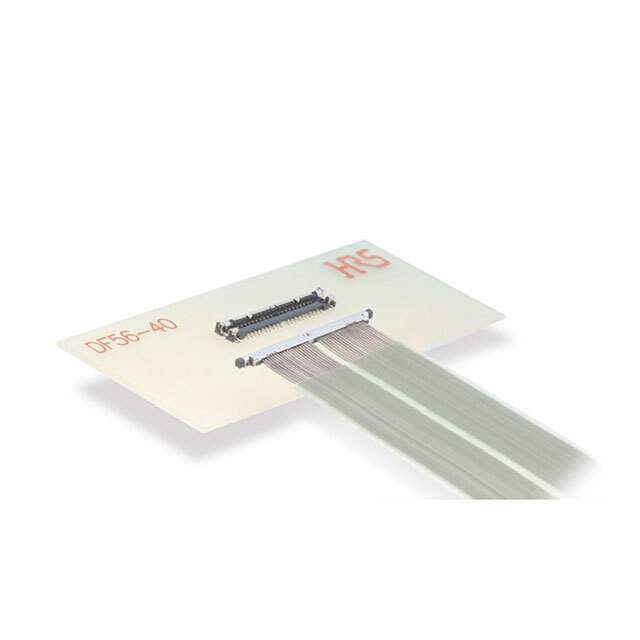

DF56C-30S-0.3V(51) Real Image
Same model may have multiple batches, images only for reference.

DF56C-30S-0.3V(51)

Part No DF56C-30S-0.3V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 30POS 0.012 GOLD SMD / 30 Position Receptacle Connector 0.012" (0.30mm) Surface Mount Gold
Datasheet
DF56C-30S-0.3V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Hirose Electric Co Ltd
Series DF56
Package Tape & Reel
Connector Type Receptacle
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.012" (0.30mm)
Number of Rows 1
Mounting Type Surface Mount
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Insulation Color Black
Insulation Height 0.057" (1.45mm)
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Grounding Tab
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 30VAC
Insulation Material Liquid Crystal Polymer (LCP) , Halogen Free
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 2.00µin (0.051µm)
Base Product Number DF56
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348106-DF56C-30S-0.3V(51)
Ultra Librarian 3D Model Ultra Librarian DF56C-30S-0.3V(51) CAD Model

Description

The Hirose Electric Co Ltd 1348106-DF56C-30S-0.3V(51) is a rectangular connector that belongs to the DF56 series.

  • Series: DF56
  • Number of Positions: 30
  • Grounding Tab: Yes
  • Connector Type: Receptacle
  • Contact Type: Non-Gendered
  • All Positions Loaded: Yes
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Packaging: Tape & Reel
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 30VAC
  • Mated Stacking Heights: Unspecified
  • Ingress Protection: Unspecified
  • Material Flammability Rating: Unspecified
  • Applications: Unspecified
  • Standard Package: 5,000
  • Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
  • Style: Board to Cable/Wire
  • Pitch - Mating: 0.012" (0.30mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 3.90µin (0.099µm)
  • Contact Finish - Post: Gold
  • Contact Finish Thickness - Post: 2.00µin (0.051µm)
  • Insulation Color: Black
  • Mounting Type: Surface Mount
