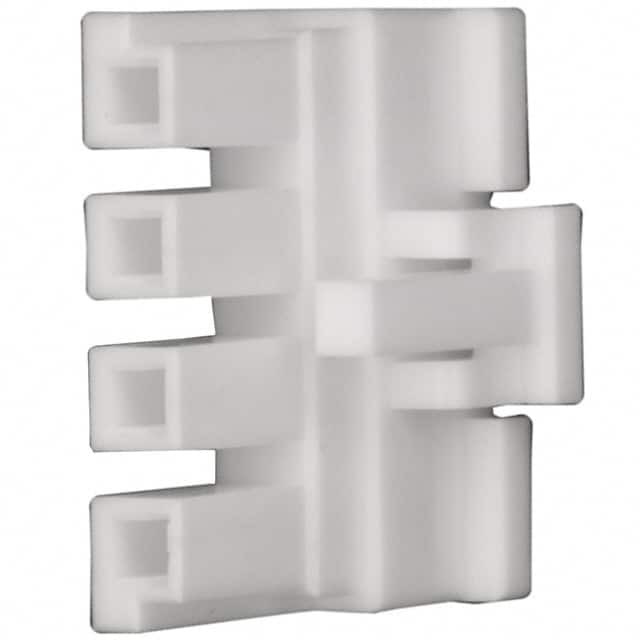

DF5A-4S-5C
Same model may have multiple batches, images only for reference.

DF5A-4S-5C

Part No DF5A-4S-5C
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT HSG 4POS 5.00MM / 4 Rectangular Connectors - Housings Receptacle White 0.197" (5.00mm)
Datasheet
DF5A-4S-5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr Hirose Electric Co Ltd
Series DF5
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 4
Pitch 0.197" (5.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color White
Temperature Range - Operating -35°C ~ 85°C
Note Contacts Not Included
Base Product Number DF5A
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 917009-DF5A-4S-5C
Ultra Librarian 3D Model Ultra Librarian DF5A-4S-5C CAD Model

Description

The 917009-DF5A-4S-5C is a rectangular connector housing from Hirose Electric Co Ltd's DF5 series. It is a receptacle connector with 4 positions and a pitch of 0.197" (5.00mm).

  • Series: DF5
  • Connector Type: Receptacle
  • Positions: 4
  • Pitch: 0.197" (5.00mm)
  • Housing Color: White
  • Fastening Type: Latch Holder
  • Mounting: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Contacts: Not Included
  • Category: Rectangular Connectors - Rectangular Connector Housings
  • Package: Bulk
  • Standard Package: 100 pieces
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (unlimited)
  • Status: Active
