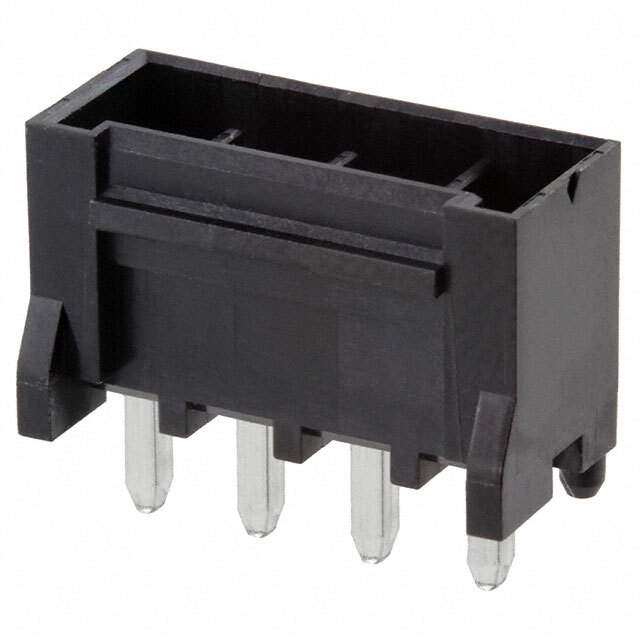

Same model may have multiple batches, images only for reference.

DF63-4P-3.96DSA

Name: DF63-4P-3.96DSA
Brand: Hirose Electric Co Ltd
SKU: 1055391
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF63-4P-3.96DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 3.96MM / Connector Header Through Hole 4 position 0.156" (3.96mm)
Datasheet	DF63-4P-3.96DSA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF63
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.150" (3.81mm)
Insulation Height	0.683" (17.35mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Mated Stacking Heights	18.8mm
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	H122365
Standard Package	100
Win Source Part Number	1055391-DF63-4P-3.96DSA
Ultra Librarian 3D Model	Ultra Librarian DF63-4P-3.96DSA CAD Model

Alternative Products

Description

The 1055391-DF63-4P-3.96DSA is a connector that belongs to the EnerBee™ DF63 series.

Supply and Demand Status: Obsolete
Manufacturer: Hirose Electric Co Ltd
Voltage Rating: -
Temperature Range: -55°C ~ 105°C
