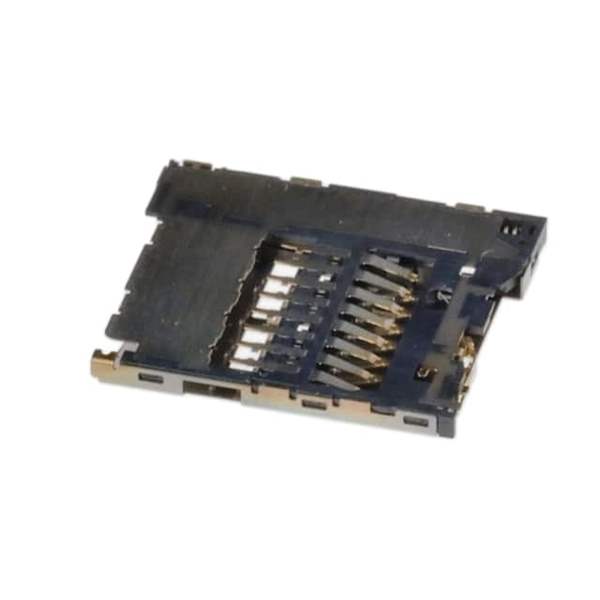

DM3NW-SF-PEJ(800)
Same model may have multiple batches, images only for reference.

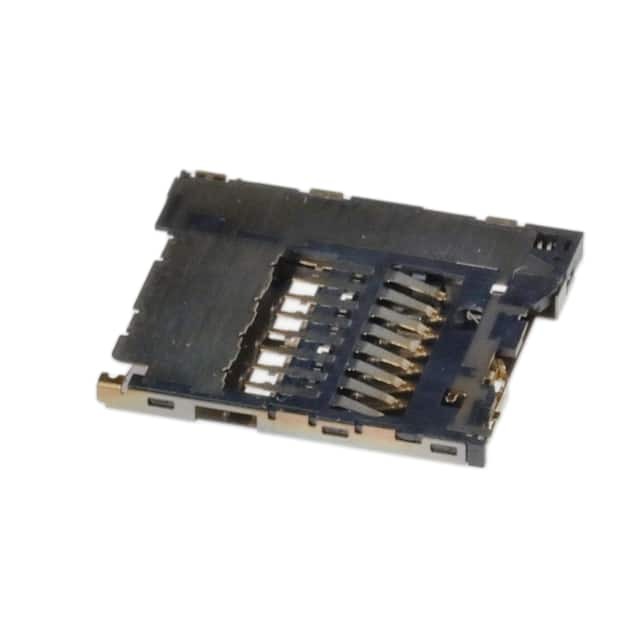

DM3NW-SF-PEJ(800)

Part No DM3NW-SF-PEJ(800)
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Description CONN MICROSD CARD PUSH-PUSH SMD / 10 (8 + 2 Power) Position Card Connector Secure Digital - microSD? Surface Mount, Right Angle Gold
Datasheet
DM3NW-SF-PEJ(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Hirose Electric Co Ltd
Series DM3
Package Tape & Reel
Product Status Active
Card Type Secure Digital - microSD™
Number of Positions 10 (8 + 2 Power)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Ejector Side Right
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.045" (1.15mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Base Product Number DM3NW
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849518-DM3NW-SF-PEJ(800)
Ultra Librarian 3D Model Ultra Librarian DM3NW-SF-PEJ(800) CAD Model

Description

The DM3NW-SF-PEJ(800) is a PC Card Socket connector from Hirose Electric Co Ltd.

  • Series: DM3
  • Positions: 10 (8 for regular connections, 2 for power)
  • Switch: Yes
  • Card Type: Secure digital - microSD™
  • Insertion and Removal Method: Push-in and push-out
  • Ejector Location: Right side
  • Mounting Type: Surface mount and right angle
  • Height Above Board: 0.045" (1.15mm)
  • Contact Finish: Gold with a thickness of 2.00μin (0.051μm)
  • Package: Tape and reel
  • Standard Package Quantity: 1,500 pcs
  • Product Status: Active
  • ECCN: EAR99
