Same model may have multiple batches, images only for reference.

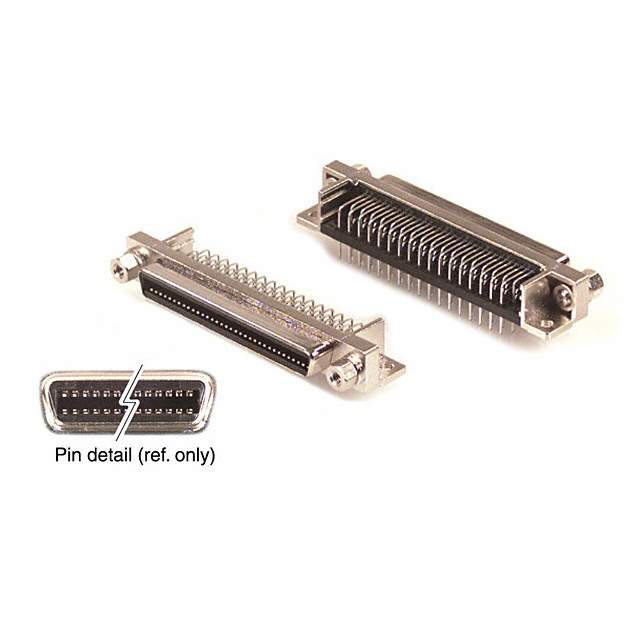

DX10BM-68S(50) Real Image
Same model may have multiple batches, images only for reference.

DX10BM-68S(50)

Part No DX10BM-68S(50)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Description CONN MINI HD RCPT 68P R/A SOLDER / 68 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder
Datasheet
DX10BM-68S(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr Hirose Electric Co Ltd
Series DXM
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 68
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Mating Side, Female Screwlock (M2.6)
Type Miniature High Density (HD)
Contact Finish Gold
Base Product Number DX10
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338753-DX10BM-68S(50)
Ultra Librarian 3D Model Ultra Librarian DX10BM-68S(50) CAD Model

Description

The Hirose Electric Co Ltd 1338753-DX10BM-68S(50) is a miniature high density (HD) D-sub connector that is ideal for use in Centronics connectors. This connector has 68 positions, is a receptacle type, and has outer shroud contacts.

  • Positions: 68
  • Type: Receptacle
  • Contacts: Outer Shroud
  • Contact Finish: Gold
  • Temperature Range: -35°C to 85°C
  • Series: DXM
  • Status: Active
