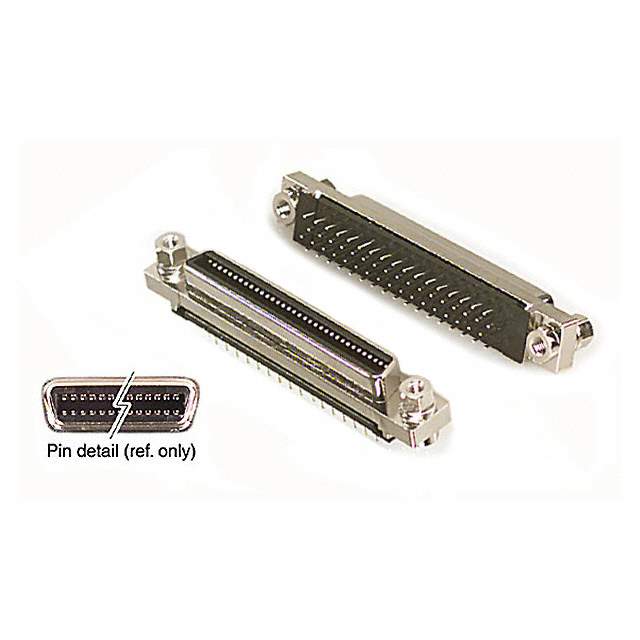

DX20BM-68S(50) Real Image
Same model may have multiple batches, images only for reference.

DX20BM-68S(50)

Part No DX20BM-68S(50)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Description CONN MINI HD RCPT 68P PCB SOLDER / 68 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder
Datasheet
DX20BM-68S(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Shaped Connectors - Centronics
Mfr Hirose Electric Co Ltd
Series DXM
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 68
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Termination Solder
Flange Feature Mating Side, Female Screwlock (M2.6)
Type Miniature High Density (HD)
Contact Finish Gold
Base Product Number DX20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 230-5020-3-50,-DX20BM-68S(50),*DX20BM-68S(50)-ND,*DX20BM-68S(50),H11325
Standard Package 30
Win Source Part Number 1216870-DX20BM-68S(50)
Ultra Librarian 3D Model Ultra Librarian DX20BM-68S(50) CAD Model

Description

The Hirose Electric Co Ltd DX20BM-68S(50) is a miniature high-density (HD) D-shaped connector that has 68 positions and is packaged on a tray manufactured by Hirose Electric Co Ltd Hirose Electric Co Ltd.

  • Positions: 68
  • Package: Tray
  • Connector Type: Receptacle
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Outer Shroud Contacts: Yes
  • Mounting: Panel Mount, Through Hole
  • Mating Side Feature: Flange with Female Screwlock (M2.6)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Series: DXM
  • Popularity: Medium
