Same model may have multiple batches, images only for reference.

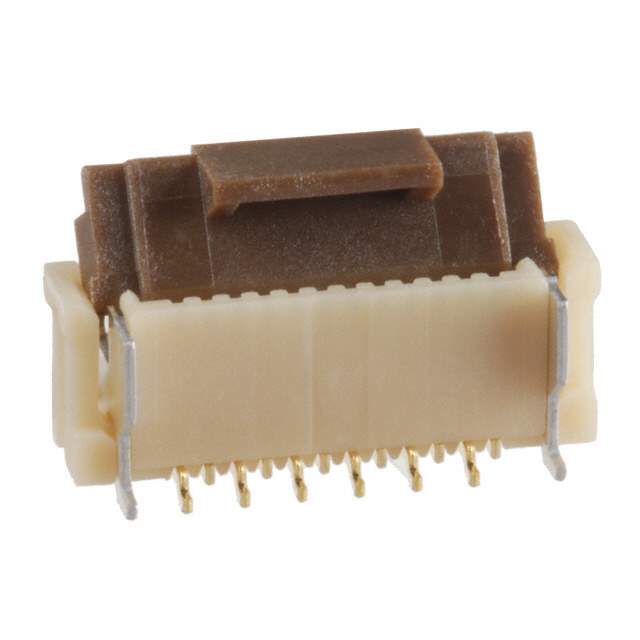

FH12-12S-0.5SVA(54) Real Image
Same model may have multiple batches, images only for reference.

FH12-12S-0.5SVA(54)

Part No FH12-12S-0.5SVA(54)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 12POS 0.50MM SMD / 12 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
FH12-12S-0.5SVA(54) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 12
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Base Product Number FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names FH12-12S-0.5SVA(54)-ND,H125135CT,586-0757-7-54,H125135TR,H125135DKR
Standard Package 1,000
Win Source Part Number 982953-FH12-12S-0.5SVA(54)
Ultra Librarian 3D Model Ultra Librarian FH12-12S-0.5SVA(54) CAD Model

Description

The Hirose Electric Co Ltd 982953-FH12-12S-0.5SVA(54) is a flat flexible connector that is used for FFC and FPC connections.

  • Type: Flat Flexible Connector
  • Application: FFC/FPC Connections
  • Positions: 12
  • Pitch: 0.020" (0.50mm)
  • Feature: Solder Retention
  • Feature: Zero Insertion Force (ZIF)
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Height Above Board: 0.142" (3.60mm)
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
  • Manufacturer: Hirose Electric Co Ltd
