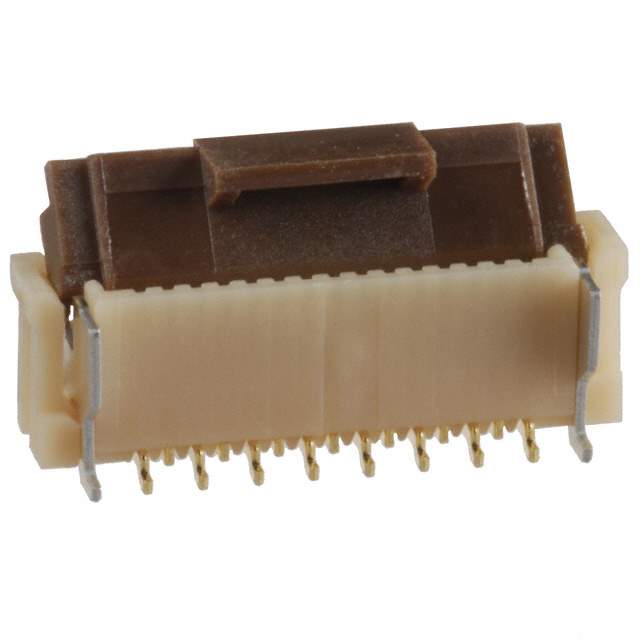

FH12-16S-0.5SVA(54) Real Image
Same model may have multiple batches, images only for reference.

FH12-16S-0.5SVA(54)

Part No FH12-16S-0.5SVA(54)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 16POS 0.50MM SMD / 16 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Base Product Number FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names H125138CT,H125138TR,586-0809-9-54,FH12-16S-0.5SVA(54)-ND,H125138DKR
Standard Package 1,000
Win Source Part Number 1167577-FH12-16S-0.5SVA(54)
Ultra Librarian 3D Model Ultra Librarian FH12-16S-0.5SVA(54) CAD Model

Description

The 1167577-FH12-16S-0.5SVA(54) is a 16 position FFC, FPC connector with a pitch of 0.5mm from Hirose Electric Co Ltd.

  • Pitch: 0.5mm
  • Feature: Solder Retention
  • Feature: Zero Insertion Force (ZIF)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Housing Material: Polyamide (PA), Nylon
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Flat Flex Type: FFC, FPC
  • Height Above Board: 0.142" (3.60mm)
