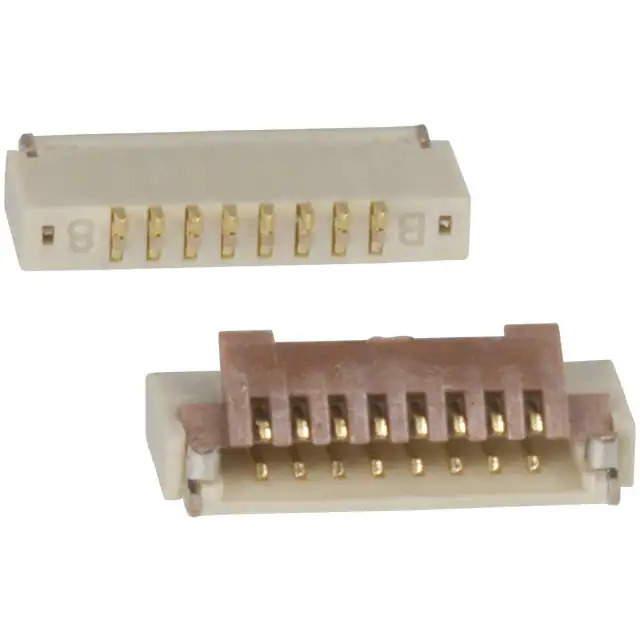

Same model may have multiple batches, images only for reference.
FH19C-8S-0.5SH(10) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH19C-8S-0.5SH(10)

Part No FH19C-8S-0.5SH(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 0.5MM R/A / 8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH19C-8S-0.5SH(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH19C
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness -
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Base Product Number FH19
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1362686-FH19C-8S-0.5SH(10)
Ultra Librarian 3D Model Ultra Librarian FH19C-8S-0.5SH(10) CAD Model

Description

The FH19C-8S-0.5SH(10) is a surface mount, right angle FFC, FPC (Flat Flexible) connector assembly manufactured by Hirose Electric Co Ltd. It is part of the FH19C series and has a current rating of 0.5A.

  • Mounting Type: Surface Mount, Right Angle
  • Series: FH19C
  • Current Rating: 0.5A
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Positions: 8
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Housing Color: Beige
  • Pitch: 0.020" (0.50mm)
  • Voltage Rating: 50V
  • Height Above Board: 0.035" (0.88mm)
  • Locking Feature: Flip Lock
  • Cable End Type: Tapered
  • Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
  • Flammability Rating: UL94 V-0
  • Manufacturer: Hirose Electric Co Ltd
