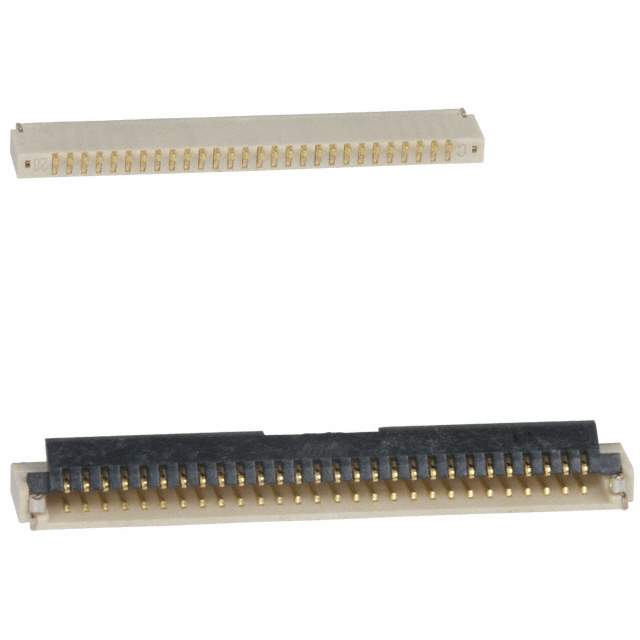

FH19SC-28S-0.5SH(99) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-28S-0.5SH(99)

Part No FH19SC-28S-0.5SH(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 28POS 0.50MM R/A / 28 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH19SC-28S-0.5SH(99) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH19SC
Package Tape & Reel (TR)
Product Status Last Time Buy
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 28
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number FH19
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 2266-FH19SC-28S-0.5SH(99),580-0513-4-99
Standard Package 500
Win Source Part Number 1059112-FH19SC-28S-0.5SH(99)
Ultra Librarian 3D Model Ultra Librarian FH19SC-28S-0.5SH(99) CAD Model

Description

The Hirose Electric Co Ltd FH19SC-28S-0.5SH(99) is a 28-position connector with bottom contacts.

  • Product: FH19SC-28S-0.5SH(99)
  • Manufacturer: Hirose Electric Co Ltd
  • Positions: 28
  • Contact Type: Bottom contacts
  • Series: FH19SC
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention and zero insertion force (ZIF)
  • Contact Finish: Gold
  • Mounting: Surface mount, right angle mounting
  • Height Above Board: 0.037" (0.95mm)
  • Compatible Flex Types: FFC and FPC
  • Flex Thickness: 0.30mm
  • Packaging: Tape & reel
  • Estimated Production Lead Time: 25 weeks
  • Ideal for: Applications that require a small, low-cost connector with a small pitch and moderate current and voltage requirements.
