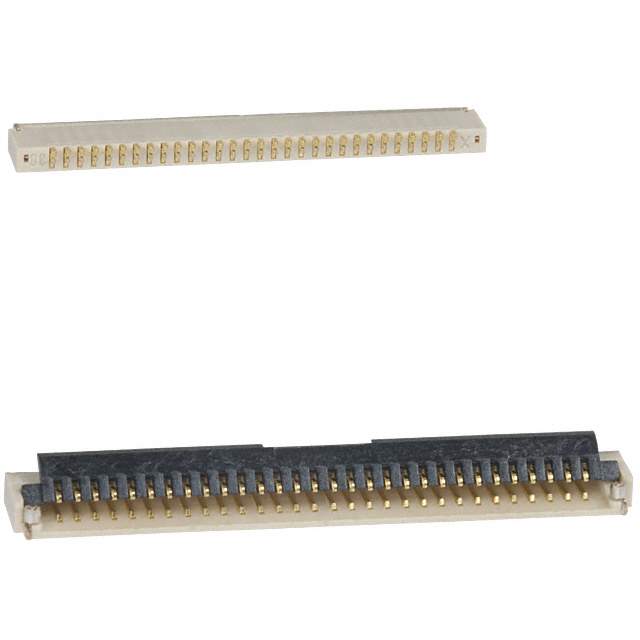

FH19SC-30S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-30S-0.5SH(05)

Part No FH19SC-30S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 30POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Part Status Obsolete (End Of Life)
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805093-FH19SC-30S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH19SC-30S-0.5SH(05) CAD Model

Description

The FH19SC-30S-0.5SH(05) is a 30-position FFC/FPC connector manufactured by Hirose Electric Co Ltd.

  • Positions: 30
  • Pitch: 0.020" (0.50mm)
  • Height Above Board: 0.037" (0.95mm)
  • Features: Solder Retention
  • Locking Feature: Flip Lock
  • Contact Finish: Gold
  • Housing Material: Liquid Crystal Polymer (LCP) (Halogen-Free)
  • Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
  • Compliance: RoHS compliant
  • Current Rating: 0.5A
