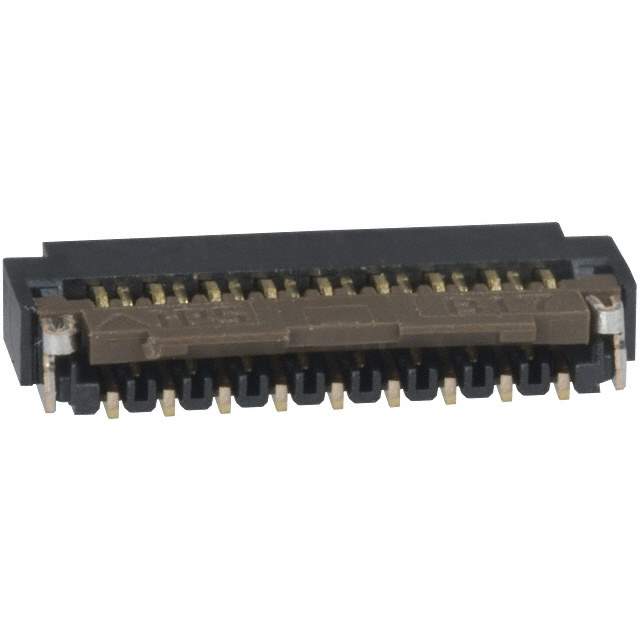

FH26-17S-0.3SHW(10) Real Image1 FH26-17S-0.3SHW(10) Real Image2
Same model may have multiple batches, images only for reference.
FH26-17S-0.3SHW(10) Real Image1 FH26-17S-0.3SHW(10) Real Image2
FH26-17S-0.3SHW(10) Real Image1 FH26-17S-0.3SHW(10) Real Image2
Same model may have multiple batches, images only for reference.

FH26-17S-0.3SHW(10)

Part No FH26-17S-0.3SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 17POS 0.3MM R/A / 17 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
FH26-17S-0.3SHW(10) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH26
Package Tape & Reel (TR)
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 17
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness -
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 5,000 pcs
Win Source Part Number 1382084-FH26-17S-0.3SHW(10)
Ultra Librarian 3D Model Ultra Librarian FH26-17S-0.3SHW(10) CAD Model

Description

The FH26-17S-0.3SHW(10) is a connector assembly from Hirose Electric Co Ltd and is a part of the FH26 series.

  • Positions: 17
  • Pitch: 0.012" (0.30mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Material: Phosphor Bronze
  • Voltage Rating: 30V
  • Height Above Board: 0.039" (1.00mm)
  • FPC Thickness: 0.20mm
  • Locking Feature: Flip Lock
  • Cable End Type: Tapered
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Mounting Type: Surface Mount, Right-Angle
  • Operating Temperature Range: -55°C to 85°C
