Same model may have multiple batches, images only for reference.

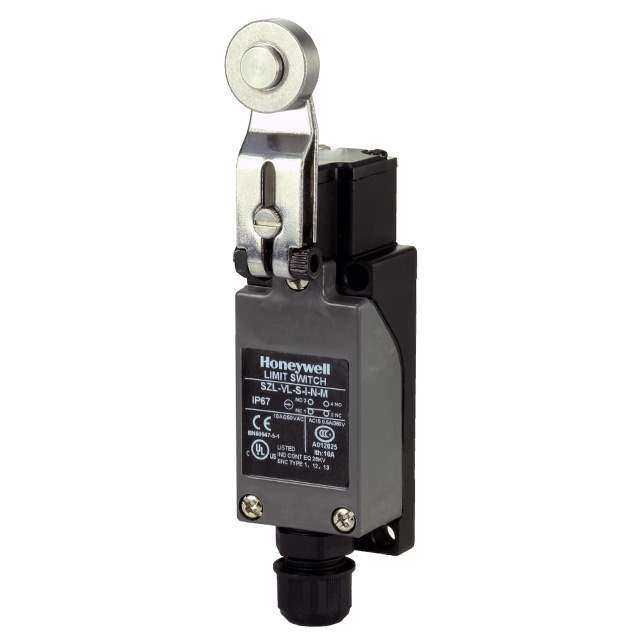

SZL-VL-S-I-N-M Real Image
Same model may have multiple batches, images only for reference.

SZL-VL-S-I-N-M

Part No SZL-VL-S-I-N-M
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 500MA 380V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-VL-S-I-N-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-VL-S
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 500mA (AC), 50mA (DC)
Voltage Rating - AC 380 V
Voltage Rating - DC 220 V
Actuator Type Side Rotary, Roller
Mounting Type Chassis Mount
Termination Style Cable Gland
Ingress Protection IP67 - Dust Tight, Waterproof
Features Steel Roller
Operating Force 18gfm
Pretravel 25°
Differential Travel 15°
Overtravel 70°
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 500,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SZL-VL
Other Names 2266-SZL-VL-S-I-N-M,480-7077
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233647-SZL-VL-S-I-N-M
Ultra Librarian 3D Model Ultra Librarian SZL-VL-S-I-N-M CAD Model

Description

The Honeywell Sensing and Productivity Solutions SZL-VL-S-I-N-M is a limit switch with a circuit of SPDT (DB/DM) and a switch function of On-Mom.

  • Circuit: SPDT (DB/DM)
  • Switch Function: On-Mom
  • Actuator Type: Steel roller and a side rotary, roller actuator type
  • Mounting: Chassis mount
  • Temperature Range: -20°C to 70°C
  • Operating Force: 18gfm
  • Mechanical Life: 10,000,000 cycles
