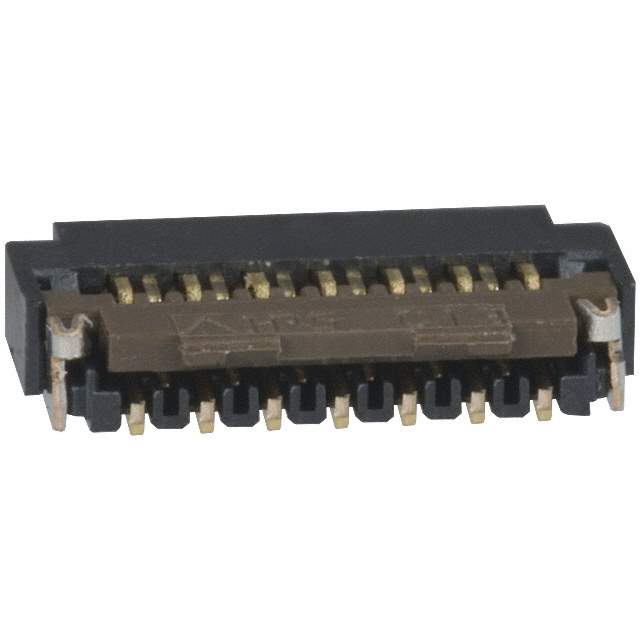

FH26W-13S-0.3SHW(15)

Get a Quote

Part No	FH26W-13S-0.3SHW(15)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 13POS 0.30MM R/A
Datasheet	FH26W-13S-0.3SHW(15) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Obsolete(EOL)
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	13
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 HB
Current Rating	0.2A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	10
Win Source Part Number	1038750-FH26W-13S-0.3SHW(15)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian FH26W-13S-0.3SHW(15) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FH26W-13S-0.3SHW(15) is a surface mount, right angle connector designed for flat flex cables (FFC) and flexible printed circuits (FPC).

Positions: 13
Pitch: 0.30mm
Height above board: 1.00mm
Voltage rating: 30V
Current rating: 0.2A
Contact Finish: Gold
Housing Material: Liquid crystal polymer (LCP)
Flammability Rating: UL94 HB
Quantity per Package: 5k pcs
