FH26W-39S-0.3SHW(05)

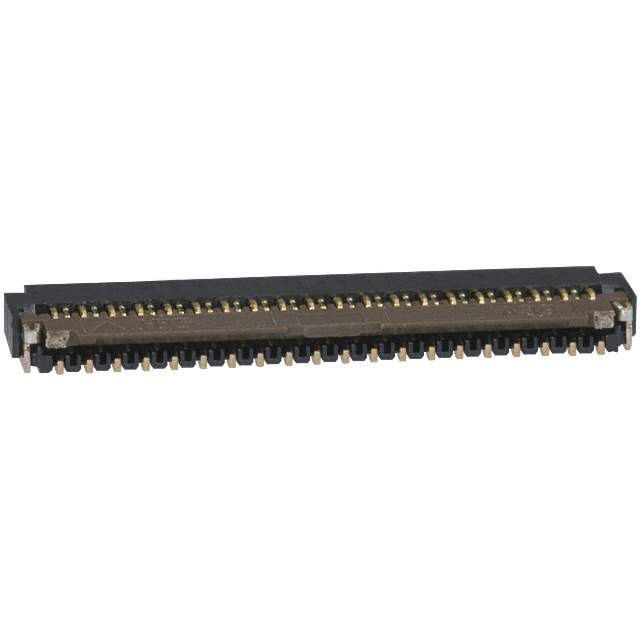

Name: FH26W-39S-0.3SHW(05)
Brand: Hirose Electric Co Ltd
SKU: 804791
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH26W-39S-0.3SHW(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 39POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Packaging	Reel
Part Status	Obsolete (End Of Life)
Flat Flex Type	FPC
Mounting Style	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	39
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 HB
Current Rating (Amps)	0.2A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	10
Manufacturer Pack Quantity	5,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804791-FH26W-39S-0.3SHW(05)
Ultra Librarian 3D Model	Ultra Librarian FH26W-39S-0.3SHW(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 804791-FH26W-39S-0.3SHW(05) is a surface mount, right angle connector.

Feature: Zero Insertion Force (ZIF)
Positions: 39
Pitch: 0.012" (0.30mm)
Termination: Solder
Contact Finish: Gold
Voltage Rating: 30V
Height Above Board: 0.039" (1.00mm)
Type: Flat Flex (FPC)
Locking Feature: Flip Lock
Housing Material: Liquid Crystal Polymer (LCP)
Actuator Material: Polyamide (PA), Nylon
Flammability Rating: UL94 HB
Color: Black
Mating Cycles: 10
Part Status: Obsolete (End of Life)
Popularity: Medium
Manufacturer Pack Quantity: 5,000
MSL Level: 1 (unlimited)
Current Rating: 0.2A
