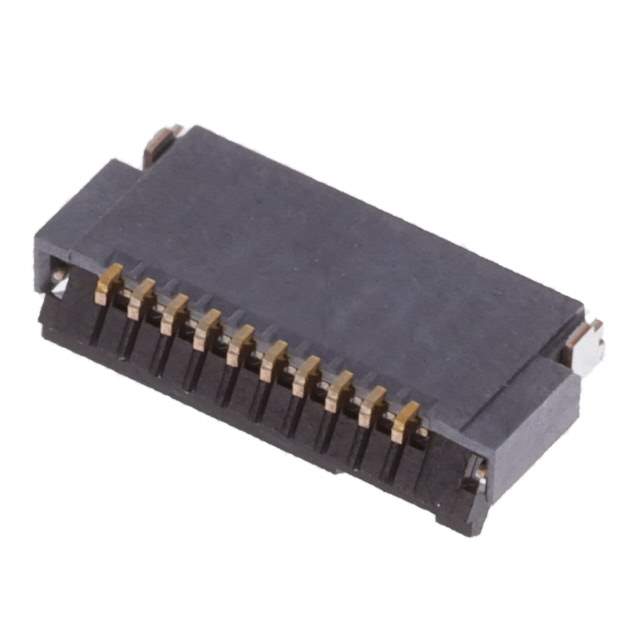

FH34D-8S-0.5SH(50) Real Image1 FH34D-8S-0.5SH(50) Real Image2
Same model may have multiple batches, images only for reference.
FH34D-8S-0.5SH(50) Real Image1 FH34D-8S-0.5SH(50) Real Image2
FH34D-8S-0.5SH(50) Real Image1 FH34D-8S-0.5SH(50) Real Image2
Same model may have multiple batches, images only for reference.

FH34D-8S-0.5SH(50)

Part No FH34D-8S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC/FPC 0.5MM R/A SMD 8POS / 8 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH34D-8S-0.5SH(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH34
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 26-FH34D-8S-0.5SH(50)TR,26-FH34D-8S-0.5SH(50)DKR,26-FH34D-8S-0.5SH(50)CT
Standard Package 5,000
Win Source Part Number 988020-FH34D-8S-0.5SH(50)
Ultra Librarian 3D Model Ultra Librarian FH34D-8S-0.5SH(50) CAD Model

Description

The FH34 series is an 8 position FFC, FPC connector from Hirose Electric with solder retention and zero insertion force (ZIF) features.

  • Mounting: surface mount, right angle
  • Pitch: 0.020" (0.50mm)
  • Housing Material: liquid crystal polymer (LCP)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Package: tape & reel
  • Standard Package: 5,000
