Same model may have multiple batches, images only for reference.

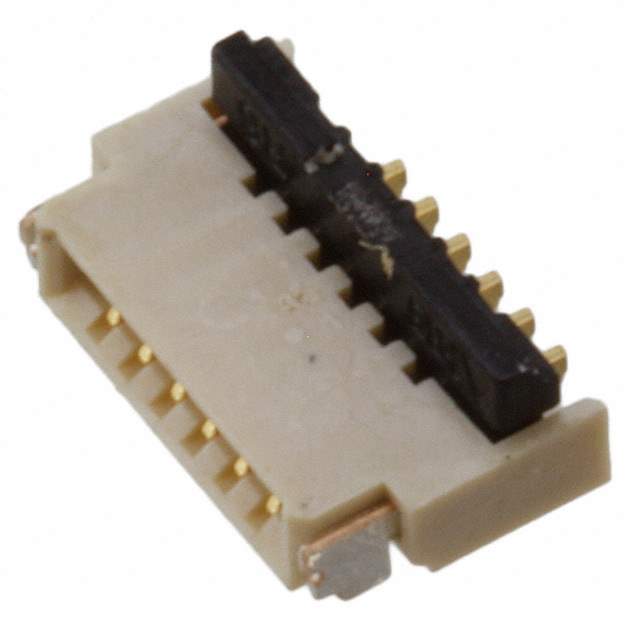

FH34SJ-6S-0.5SH(50) Real Image
Same model may have multiple batches, images only for reference.

FH34SJ-6S-0.5SH(50)

Part No FH34SJ-6S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 6POS 0.50MM R/A / 6 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH34SJ-6S-0.5SH(50) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH34SJ
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 6
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names FH34SJ6S05SH50,HFT206CT,HFT206DKR,HFT206TR
Standard Package 5,000
Win Source Part Number 1179608-FH34SJ-6S-0.5SH(50)
Ultra Librarian 3D Model Ultra Librarian FH34SJ-6S-0.5SH(50) CAD Model

Description

The Hirose Electric Co Ltd FH34SJ-6S-0.5SH(50) is a 6-position FFC, FPC connector that has a pitch of 0.020" (0.50mm).

  • Positions: 6
  • Connector Type: FFC, FPC
  • Pitch: 0.020" (0.50mm)
  • Features: Zero Insertion Force (ZIF)
  • Mounting Type: Surface Mount, Right Angle
  • Contact Finish: Gold
  • Height Above Board: 0.039" (1.00mm)
  • Series: FH34SJ
  • ECCN: EAR99
  • Status: Obsolete
  • Quantity per Package: 5,000
  • Operating Temperature Range: -55°C ~ 85°C
  • MSL Level: 1 (Unlimited)
