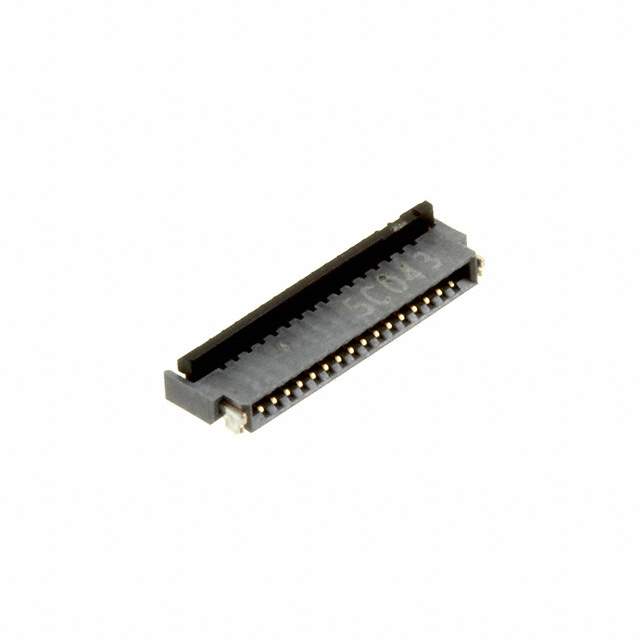

FH34SRJ-16S-0.5SH(99) Real Image
Same model may have multiple batches, images only for reference.

FH34SRJ-16S-0.5SH(99)

Part No FH34SRJ-16S-0.5SH(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC/FFC 16POS .5MM / 16 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH34SRJ
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH34SRJ
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H124722TR,-FH34SRJ-16S-0.5SH(99),580-1259-7-99,*FH34SRJ-16S-0.5SH(99)-ND,*FH34SRJ-16S-0.5SH(99)CT-ND,H124722DKR,-FH34SRJ-16S-0.5SH(99)DKR,*FH34SRJ-16S-0.5SH(99),*FH34SRJ-16S-0.5SH(99)DKR-ND,-FH34SRJ-16S-0.5SH(99)CT,H124722CT,FH34SRJ-16S-0.5SH(99)-ND,-FH34SRJ-16S-0.5SH(99)-ND
Standard Package 500
Win Source Part Number 979678-FH34SRJ-16S-0.5SH(99)
Ultra Librarian 3D Model Ultra Librarian FH34SRJ-16S-0.5SH(99) CAD Model

Description

The FH34SRJ-16S-0.5SH(99) is a 500 standard package FFC/FPC connector from Hirose Electric Co Ltd.

  • Housing Color: Gray
  • Zero Insertion Force (ZIF): Feature
  • Pitch: 0.020 inches
  • Positions: 16
  • Mounting Type: Surface Mount, Right Angle
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Halogen-Free: Feature
  • Ingress Protection: IP67/IP68
  • Temperature Range: -55°C to 105°C
