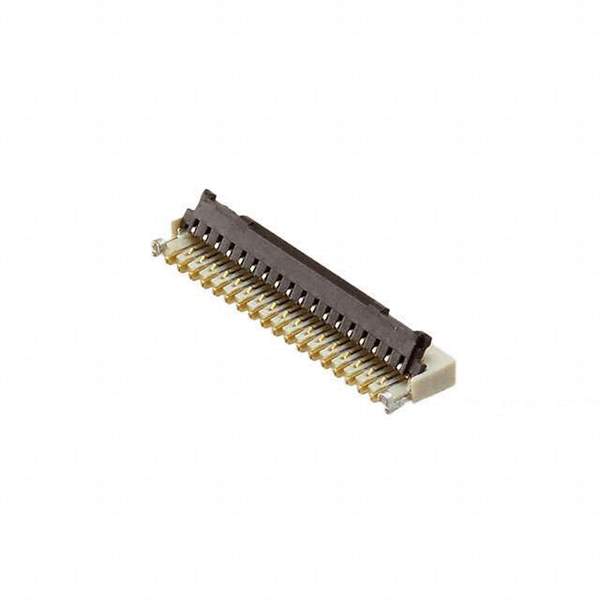

Same model may have multiple batches, images only for reference.

FH36-35S-0.3SHW(99)

Name: FH36-35S-0.3SHW(99)
Brand: Hirose Electric Co Ltd
SKU: 453867
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH36-35S-0.3SHW(99)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 35POS 0.30MM R/A
Datasheet	FH36-35S-0.3SHW(99) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	35
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A
Housing Color	Beige
Actuator Color	Brown
Mating Cycles	10
Win Source Part Number	1038816-FH36-35S-0.3SHW(99)
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	500
Ultra Librarian 3D Model	Ultra Librarian FH36-35S-0.3SHW(99) CAD Model

Alternative Products

Description

The FH36-35S-0.3SHW(99) is a zero insertion force (ZIF) connector from Hirose Electric Co Ltd.

Packaging: Reel packaged
Package Quantity: 500 pieces
Positions: 35
Pitch: 0.012 inches (0.30mm)
Flat Flex Type: FPC
Supply and Demand: Sufficient
Housing Material: Liquid crystal polymer (LCP)
Actuator Material: Polyamide (PA), nylon
Application: Commercial and Industrial
Manufacturer: Hirose Electric Co Ltd
