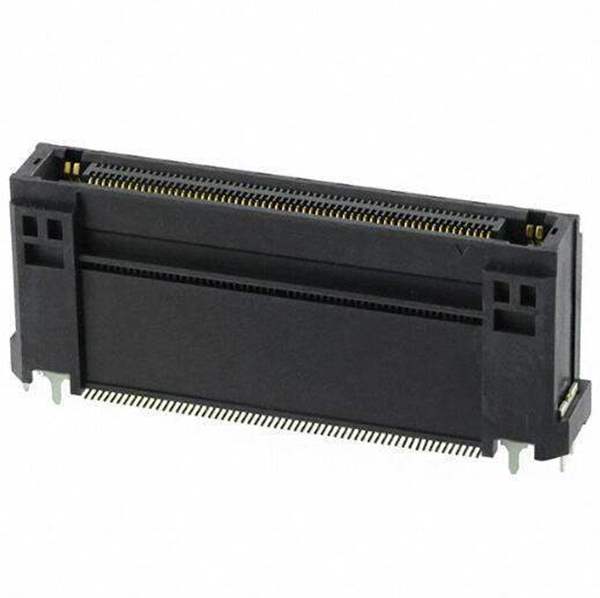

FX23-120S-0.5SV10 Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX23-120S-0.5SV10

Part No FX23-120S-0.5SV10
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 120POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Packaging Tray
Part Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 124 (120 + 4 Power)
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Win Source Part Number WS1305473-FX23-120S-0.5SV10
Ultra Librarian 3D Model Ultra Librarian FX23-120S-0.5SV10 CAD Model

Description

124 (120 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
