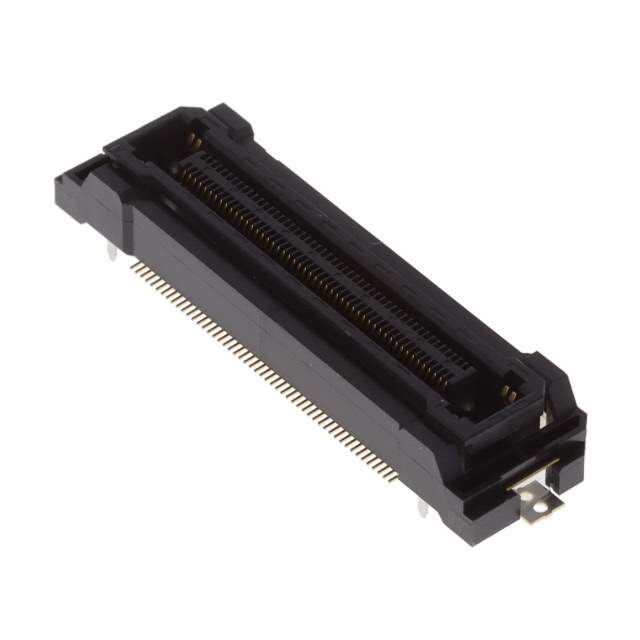

FX23L-100S-0.5SV Real Image
Same model may have multiple batches, images only for reference.

FX23L-100S-0.5SV

Part No FX23L-100S-0.5SV
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT / 104 (100 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX23L
Package Tray
Connector Type Receptacle, Center Strip Contacts
Number of Positions 104 (100 + 4 Power)
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.228" (5.80mm)
Base Product Number FX23
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337701-FX23L-100S-0.5SV
Ultra Librarian 3D Model Ultra Librarian FX23L-100S-0.5SV CAD Model

Description

The FunctionMax™ FX23L series rectangular connector array from Hirose Electric Co Ltd has a pitch of 0.020" (0.50mm) and features a board guide and pick and place capabilities.

  • Pitch: 0.020" (0.50mm)
  • Features: Board Guide and Pick and Place
  • Connector Type: Receptacle
  • Positions: 104 (100 + 4 power)
  • Rows: Two
  • Contacts: Center Strip
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Packaging: Tray
  • Height Above Board: 0.228" (5.80mm)
  • Mounting Type: Surface Mount
  • Suitable for Use in: Various electronic applications
