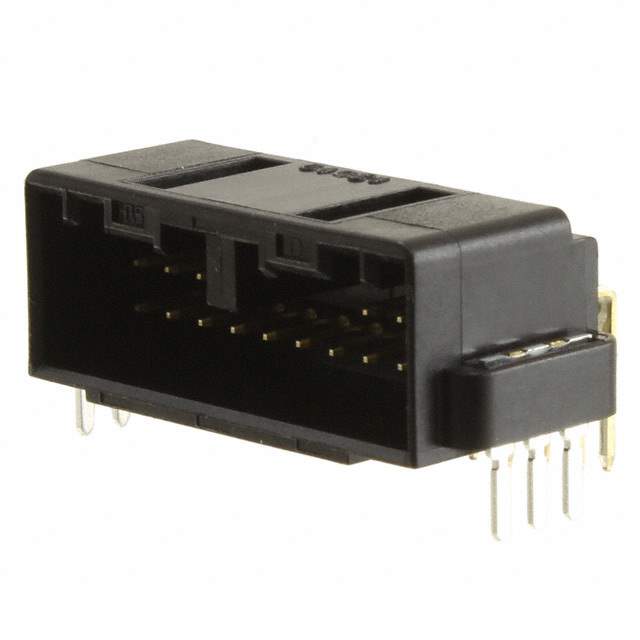

Same model may have multiple batches, images only for reference.

GT8E-16DP-DS

Name: GT8E-16DP-DS
Brand: Hirose Electric Co Ltd
SKU: 1182076
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	GT8E-16DP-DS
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 16POS 2MM / Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Datasheet	GT8E-16DP-DS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	GT8E
Package	Tray
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.387" (9.83mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Board Guide
Insulation Color	Black
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	758-0060-7-00,GT8E-16DP-DS-ND,H122079
Standard Package	88
Win Source Part Number	1182076-GT8E-16DP-DS
Ultra Librarian 3D Model	Ultra Librarian GT8E-16DP-DS CAD Model

Alternative Products

Description

The GT8E-16DP-DS is a 16-position male pin header connector from Hirose Electric Co Ltd, designed for board-to-cable/wire style connections.

Positions: 16
Rows: 2
Pitch: 0.079 inches (2.00mm)
Shrouded: 4-Wall
Mounting Style: Right-Angle Through-Hole
Fastening Type: Latch Lock
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Black
Insulation Height: 0.387 inches (9.83mm)
Post Contact Length: 0.118 inches (3.00mm)
