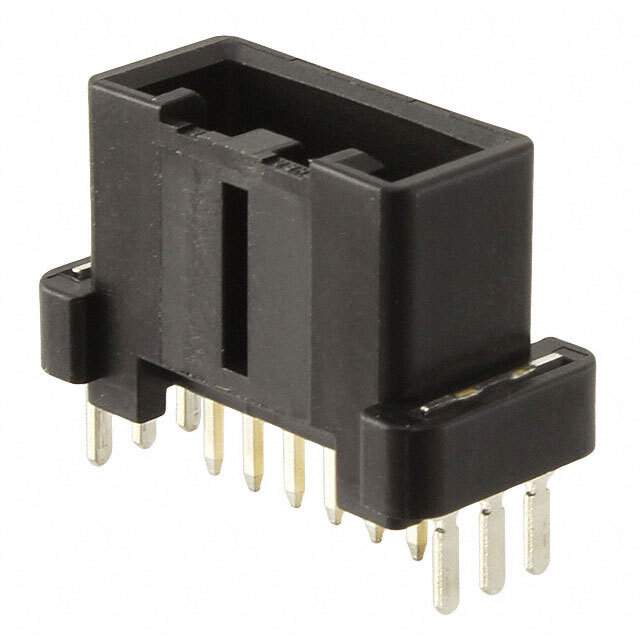

GT8E-6P-DSA Real Image
Same model may have multiple batches, images only for reference.

GT8E-6P-DSA

Part No GT8E-6P-DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2MM / Connector Header Through Hole 6 position 0.079" (2.00mm)
Datasheet
GT8E-6P-DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.476" (12.10mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Insulation Color Black
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 758-0201-7-00,GT8E-6P-DSA-ND,H122067
Standard Package 110
Win Source Part Number 1333037-GT8E-6P-DSA
Ultra Librarian 3D Model Ultra Librarian GT8E-6P-DSA CAD Model

Description

The GT8E-6P-DSA is a male pin header connector manufactured by Hirose Electric Co Ltd.

  • Positions: 6
  • Feature: Board Guide
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: One
  • Termination: Solder
  • Fastening Type: Latch Lock
  • Contact Material: Brass
  • Voltage Rating: Not Specified
  • Standard Package: 110 units
  • Mounting: Through Hole
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Pitch Mating: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Insulation Color: Black
  • Shrouding: Shrouded - 4 Wall
  • Markings: No Markings
  • Panel Cutout Dimensions: Rectangular - 15.24mm x 13.00mm
  • Circuit: SPDT
  • Switch Function: On-On
  • Actuator Type: Concave (Standard V)
  • Color of Actuator/Cap: Black
  • Panel Mount: Snap-In
  • Temperature Range for Operating: -30°C ~ 85°C
  • RoHS Compliant: Yes
