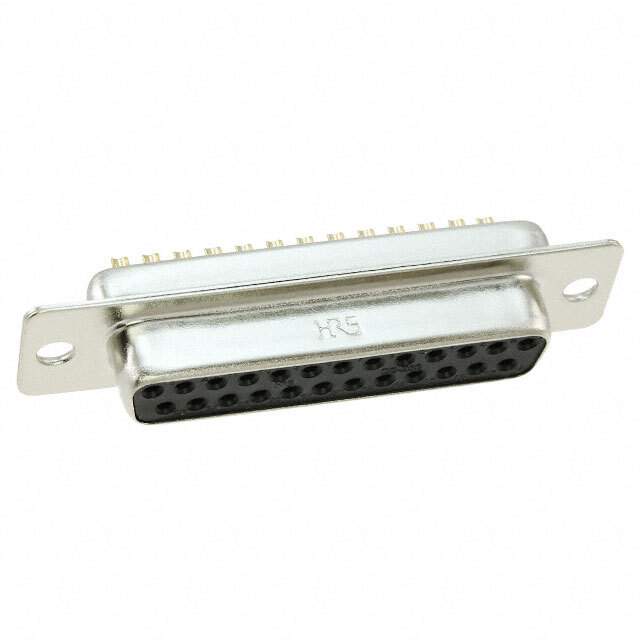

HDBB-25S(05) Real Image
Same model may have multiple batches, images only for reference.

HDBB-25S(05)

Part No HDBB-25S(05)
Manufacturer Hirose Electric Co Ltd
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS PNL MNT / 25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
HDBB-25S(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Panel Mount
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 400V
Color Black
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -40°C ~ 85°C
Base Product Number HDB
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 211-0216-0-05,*HDBB-25S(05)-ND,-HDBB-25S(05),H122684,*HDBB-25S(05)
Standard Package 30
Win Source Part Number 1333231-HDBB-25S(05)
Ultra Librarian 3D Model Ultra Librarian HDBB-25S(05) CAD Model

Description

The Hirose Electric Co Ltd HDBB-25S(05) is a 25-position D-Sub Connector Assembly with a receptacle, female sockets connector type.

  • Positions: 25
  • Connector Type: Receptacle, Female Sockets
  • Voltage Rating: 400V
  • Current Rating: 3A
  • Connector Style: D-Sub
  • Mounting Type: Panel Mount
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Shell Material: Steel
  • Shell Plating: Nickel Plated
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Temperature Range: -40°C ~ 85°C
  • Material Flammability Rating: UL94 V-0
  • Flange Feature: Housing/Shell (Unthreaded)
  • Rows: Two
  • Contact Form: Stamped
  • RoHS Compliant: Yes
