Same model may have multiple batches, images only for reference.

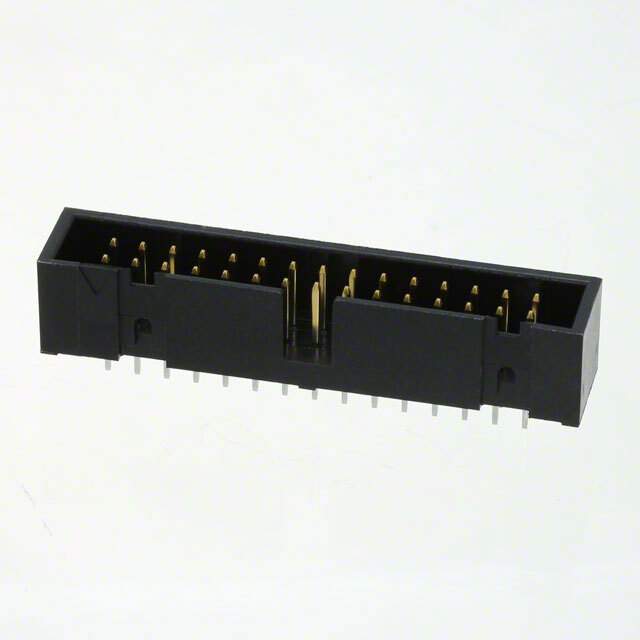

HIF3FC-30PA-2.54DSA(71) Real Image
Same model may have multiple batches, images only for reference.

HIF3FC-30PA-2.54DSA(71)

Part No HIF3FC-30PA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 30POS 2.54MM / Connector Header Through Hole 30 position 0.100" (2.54mm)
Datasheet
HIF3FC-30PA-2.54DSA(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 200V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number HIF3
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -HIF3FC-30PA-2.54DSA(71),*HIF3FC-30PA-2.54DSA(71)-ND,*HIF3FC-30PA-2.54DSA(71),616-0166-8-71,H123852,HIF3FC-30PA-2.54DSA(71)-ND
Standard Package 70
Win Source Part Number 1332374-HIF3FC-30PA-2.54DSA(71)
Ultra Librarian 3D Model Ultra Librarian HIF3FC-30PA-2.54DSA(71) CAD Model

Description

The HIF3FC-30PA-2.54DSA(71) is a header connector from Hirose Electric Co Ltd.

  • Applications: Board to board or cable
  • Pitch - Mating: 0.100" (2.54mm)
  • Packaging: Tray
  • Standard Package: 70
  • Positions: 30
  • Rows: 2
  • Contact Type: Male pin
  • Mounting: Through-hole
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 8.00µin (0.203µm)
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Insulation Color: Black
  • ECCN: EAR99
  • RoHS Compliant: Yes
