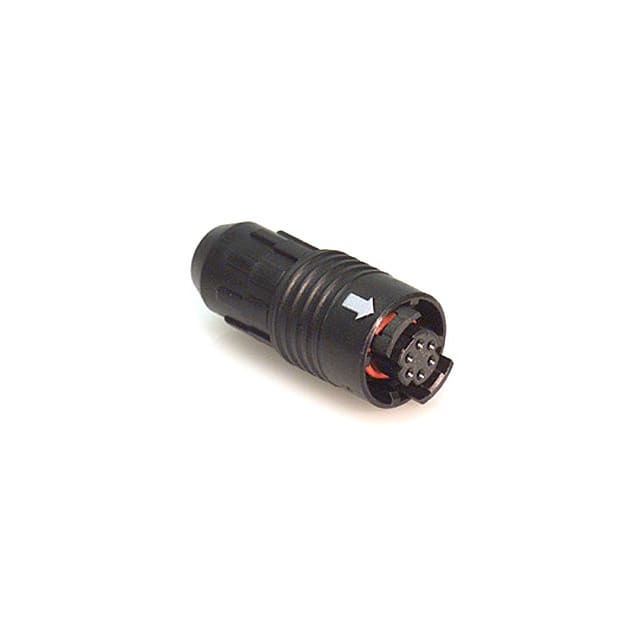

HR30-6P-6S(71)
Same model may have multiple batches, images only for reference.

HR30-6P-6S(71)

Part No HR30-6P-6S(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE 6P GOLD SLDR CUP / 6 (Power) Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
HR30-6P-6S(71) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HR30
Package Tray
Product Status Obsolete
Connector Type Plug, Female Sockets
Number of Positions 6 (Power)
Shell Size - Insert 6
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Strain Relief
Current Rating (Amps) 2A
Voltage Rating 100VAC, 140VDC
Cable Opening 0.165" ~ 0.197" (4.20mm ~ 5.00mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Contact Material Bronze Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Marine, Medical
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 920586-HR30-6P-6S(71)
Ultra Librarian 3D Model Ultra Librarian HR30-6P-6S(71) CAD Model

Description

The HR30 series is a range of circular connectors designed for industrial, marine, and medical applications by Hirose Electric Co Ltd.

  • Positions: 6 power positions
  • Fastening Type: Push-pull
  • Voltage Rating: 100VAC and 140VDC
  • Ingress Protection Rating: IP67/IP68
  • Shell Material: Polybutylene terephthalate (PBT)
  • Contact Material: Bronze alloy
  • Current Rating: 2A
  • Mounting: Free hanging (in-line)
  • Temperature Range: -25°C to 85°C
