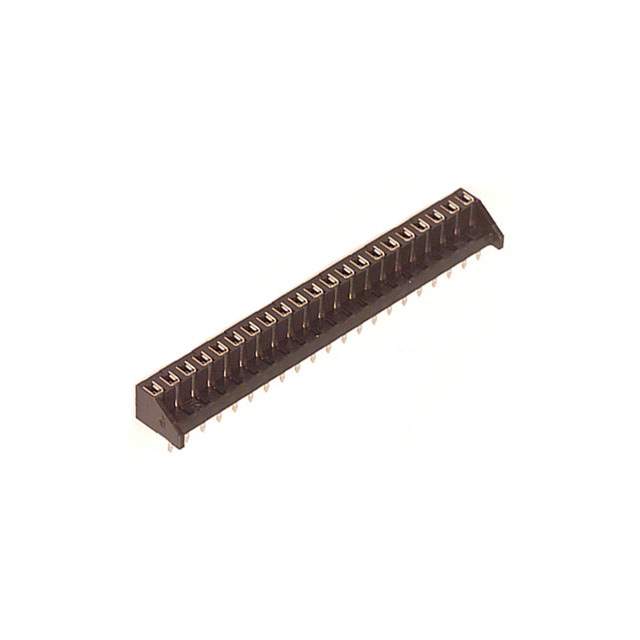

MDF7-21S-2.54DSA(55) Real Image
Same model may have multiple batches, images only for reference.

MDF7-21S-2.54DSA(55)

Part No MDF7-21S-2.54DSA(55)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RECEPT 21POS SINGLE TIN
Datasheet
MDF7-21S-2.54DSA(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Status Active
Connector Type Receptacle, Bottom Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 21
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 78.7μin (2.00μm)
Insulation Color Black
Insulation Height 0.197" (5.00mm)
Contact Length - Post 0.118" (3.00mm)
Temperature Range - Operating -35°C to 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 3A
Voltage Rating 250VAC
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Contact Finish Thickness - Post 78.7μin (2.00μm)
Win Source Part Number 138038-MDF7-21S-2.54DSA(55)
Ultra Librarian 3D Model Ultra Librarian MDF7-21S-2.54DSA(55) CAD Model

Description

The Hirose Electric Co Ltd 138038-MDF7-21S-2.54DSA(55) is a receptacle type connector that is used in electronic devices.

  • Connector Type: Receptacle
  • Positions: 21
  • Pitch: 2.54mm
  • Contact Finish: Tin
  • Mounting Type: Through-hole
  • Voltage Rating: 250VAC
  • Current Rating: 3A
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA), nylon
  • Style: Board-to-board
  • Contact Length: 0.118" (3.00mm)
  • Insulation Height: 0.197" (5.00mm)
  • Insulation Color: Black
  • Market Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
