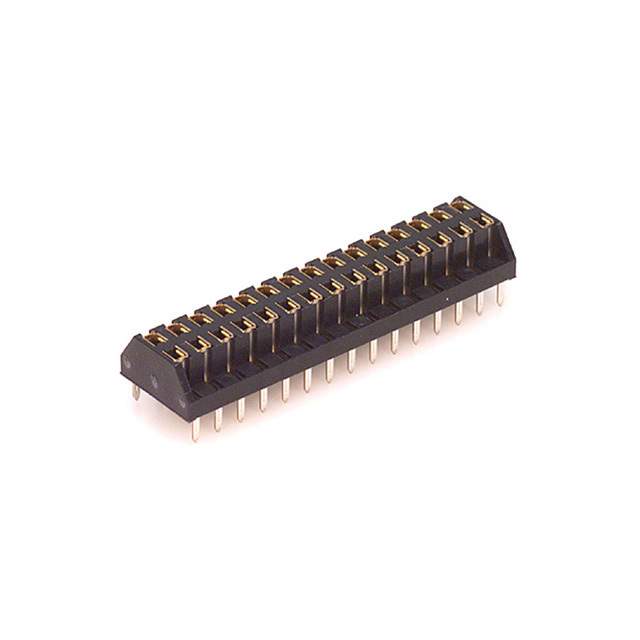

MDF7-30D-2.54DSA

Get a Quote

Part No	MDF7-30D-2.54DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 30POS 0.1 TIN PCB / 30 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	MDF7-30D-2.54DSA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	MDF7
Package	Bulk
Product Status	Obsolete
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Insulation Color	Black
Insulation Height	0.197" (5.00mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	3A
Voltage Rating	250VAC
Insulation Material	Polyamide (PA) , Nylon
Contact Shape	Square
Contact Material	Phosphor Bronze
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1336728-MDF7-30D-2.54DSA
Ultra Librarian 3D Model	Ultra Librarian MDF7-30D-2.54DSA CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd MDF7 series is a 30 position receptacle, bottom entry connector type with a female socket contact.

Connector Type: Receptacle
Number of Positions: 30
Entry Direction: Bottom Entry
Contact Gender: Female Socket
Connector Style: Board to Board
Pitch: 0.100" (2.54mm)
Contact Finish: Tin
Contact Finish Thickness: 39.4µin (1.00µm)
Insulation Material: Polyamide (PA), nylon
Voltage Rating: 250VAC
Current Rating: 3A
MSL Level: 1 (unlimited)
Product Status: Obsolete
HTSUS: 8536.69.4040
