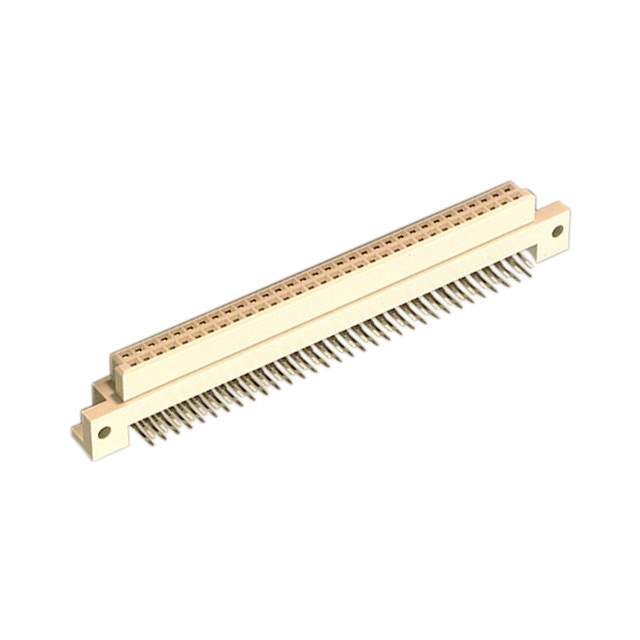

PCN13-64S-2.54DS Real Image
Same model may have multiple batches, images only for reference.

PCN13-64S-2.54DS

Part No PCN13-64S-2.54DS
Manufacturer Hirose Electric Co Ltd
Catalog Backplane Connectors
Description CONN DIN RCPT 64POS PCB RA GOLD / 64 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Hirose Electric Co Ltd
Series PCN13
Package Tray
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Number of Positions 64
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Level, Class 1
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 85°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Standard Package 64
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351631-PCN13-64S-2.54DS
Ultra Librarian 3D Model Ultra Librarian PCN13-64S-2.54DS CAD Model

Description

The PCN13 series connector assembly is a backplane connector with 64 positions and a pitch of 0.100" (2.54mm).

  • Type: Backplane Connector
  • Positions: 64
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Receptacle
  • Gender: Female Sockets
  • Loading: All Positions Loaded
  • Termination: Solder
  • Contact Finish: Gold
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 64
  • Style: B
  • Temperature Range: -55°C to 85°C
  • Current Rating: 2A
  • Usage: Commonly used in obsolete products
