Same model may have multiple batches, images only for reference.

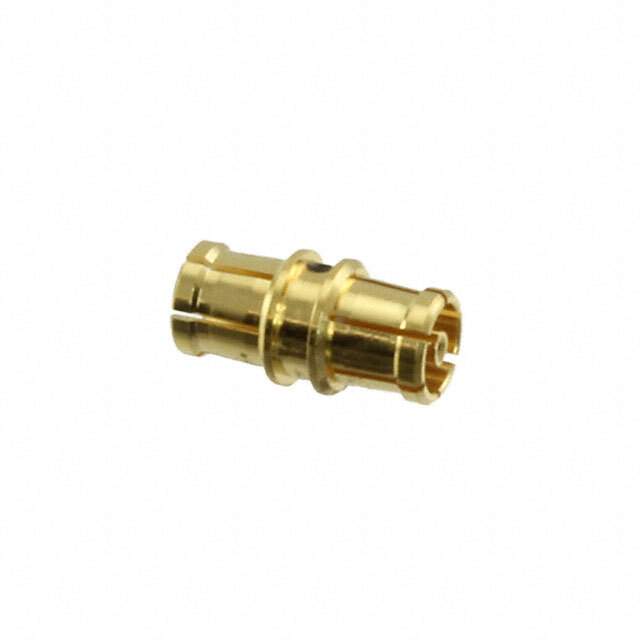

SMPM-A-JJ-532 Real Image
Same model may have multiple batches, images only for reference.

SMPM-A-JJ-532

Part No SMPM-A-JJ-532
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Adapters
Datasheet
SMPM-A-JJ-532 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Hirose Electric Co Ltd
Series SMPM
Package Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series SMPM to SMPM
Center Gender Female to Female
Convert From (Adapter End) SMPM Jack, Female Socket
Convert To (Adapter End) SMPM Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Snap-On, Snap-On
Frequency - Max 65 GHz
Center Contact Plating Gold
Body Material Beryllium Copper
Body Finish Gold
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 100
Temperature Range - Operating -55°C ~ 125°C
Base Product Number SMPM
Other Names H125065,338-0500-0-00
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1294145-SMPM-A-JJ-532
Ultra Librarian 3D Model Ultra Librarian SMPM-A-JJ-532 CAD Model

Description

The SMPM Jack to Jack Adapter is a high-performance connector that ensures reliable and stable signal transmission.

  • Frequency Range: Up to 65 GHz
  • Impedance: 50 Ohm
  • Application: High-frequency applications
  • Fastening Type: Snap-on
  • Style: Straight
  • Body Material: Beryllium copper
  • Center Contact Material: Beryllium copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Connectors: SMPM Jack, Female Socket
  • Series: SMPM to SMPM adapter
  • Temperature Range: -55°C to 125°C
  • Environment: Harsh environments
  • Mounting: Free hanging (in-line)
  • Packaging: Bulk
