Same model may have multiple batches, images only for reference.

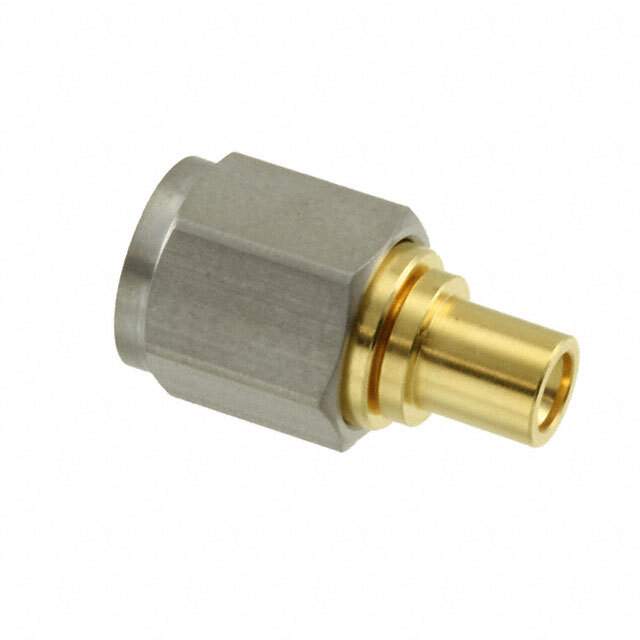

SMPMP(FD)-HVP Real Image
Same model may have multiple batches, images only for reference.

SMPMP(FD)-HVP

Part No SMPMP(FD)-HVP
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Adapters
Datasheet
SMPMP(FD)-HVP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Hirose Electric Co Ltd
Series SMPM
Package Bulk
Adapter Type Plug to Plug
Conversion Type Between Series
Adapter Series 1.85mm to SMPM
Center Gender Male to Male
Convert From (Adapter End) 1.85mm Plug, Male Pin
Convert To (Adapter End) SMPM Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Snap-On, Threaded
Frequency - Max 65 GHz
Center Contact Plating Gold
Body Material Stainless Steel
Body Finish Gold; Passivated
Center Contact Material Phosphor Bronze
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 100
Temperature Range - Operating -55°C ~ 125°C
Base Product Number SMPM
Other Names H125066,311-0419-5-00
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1294144-SMPMP(FD)-HVP
Ultra Librarian 3D Model Ultra Librarian SMPMP(FD)-HVP CAD Model

Description

The SMPMP(FD)-HVP is a high-performance coaxial connector adapter designed for use in a wide range of applications, such as microwave communication systems, test and measurement equipment, and military and aerospace systems.

  • Manufacturer: Hirose Electric Co Ltd
  • Series: SMPM
  • Fastening Type: Snap-on and threaded
  • Style: Straight
  • Body Finish: Gold and passivated
  • Frequency Range: Up to 65 GHz
  • Impedance: 50 Ohm
  • Mating Cycles: Maximum of 100
