Same model may have multiple batches, images only for reference.

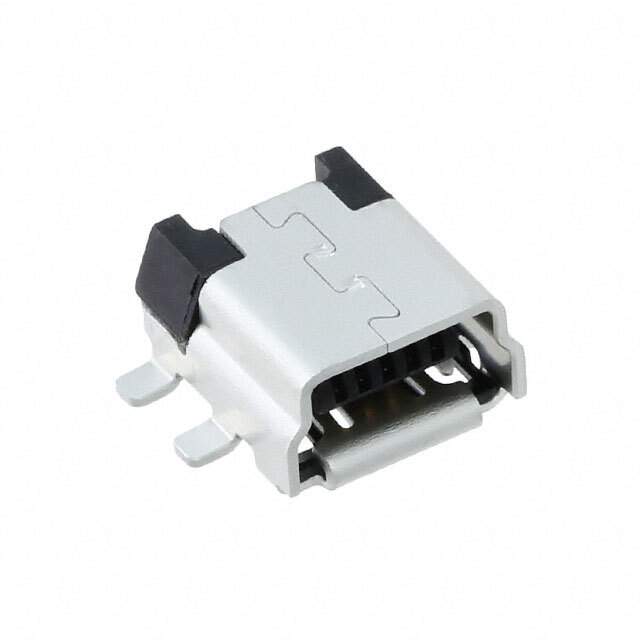

UX60RA-MB-5ST Real Image
Same model may have multiple batches, images only for reference.

UX60RA-MB-5ST

Part No UX60RA-MB-5ST
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MINI B SMD R/A / USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet
UX60RA-MB-5ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Hirose Electric Co Ltd
Series UX
Package Tape & Reel
Product Status Obsolete
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C ~ 75°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 5VAC
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating UL94 V-0
Insulation Color Black
Standard Package 900
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339306-UX60RA-MB-5ST
Ultra Librarian 3D Model Ultra Librarian UX60RA-MB-5ST CAD Model

Description

The UX60RA-MB-5ST is a USB connector assembly that falls under the category of USB, DVI, HDMI connector assemblies.

  • Features: Solder Retention
  • Connector Type: USB - mini B
  • Termination: Solder
  • Shielding: Shielded
  • Number of Contacts: 5
  • Gender: Receptacle
  • Specifications: USB 2.0
  • Mounting Feature: Horizontal
  • Package: Tape & Reel
  • Standard Package: 900
  • Voltage Rating: 5VAC
  • Mating Cycles: 5000
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -30°C to 75°C
