Same model may have multiple batches, images only for reference.

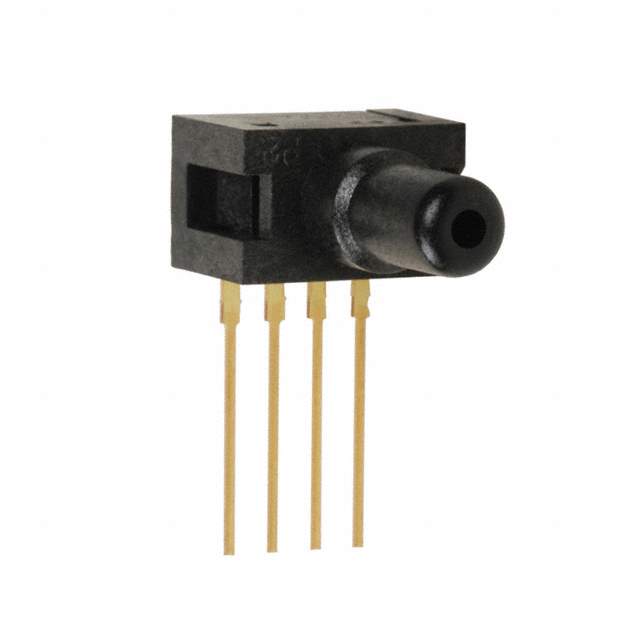

24PCAFA6G Real Image
Same model may have multiple batches, images only for reference.

24PCAFA6G

Part No 24PCAFA6G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 1PSI GAUGE / Pressure Sensor ±1PSI (±6.89kPa) Compound Male - 0.2" (5mm) Tube 0 mV ~ 45 mV (10V) 4-SIP Module
Datasheet
24PCAFA6G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Tray
Applications Board Mount
Pressure Type Compound
Operating Pressure ±1PSI (±6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 45 mV (10V)
Accuracy ±1%
Voltage - Supply 10V ~ 12V
Port Size Male - 0.2" (5mm) Tube
Port Style Barbless
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 4-SIP Module
Base Product Number 24PCAFA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 480-2497
Standard Package 25
Win Source Part Number 1336484-24PCAFA6G
Ultra Librarian 3D Model Ultra Librarian 24PCAFA6G CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1336484-24PCAFA6G pressure sensor is a highly accurate, compound type sensor with a pressure range of ±1PSI (±6.89kPa).

  • Maximum Pressure: ±20PSI (±137.9kPa).
  • Output Type: Wheatstone bridge.
  • Output: 0 mV to 45 mV (10V).
  • Accuracy: ±1%.
  • Voltage Supply: 10V to 12V.
  • Temperature Range: -40°C to 85°C.
  • Port Size: Male 0.2” (5mm) tube.
  • Port Style: Barbless.
  • Package: 4-SIP module.
  • RoHS Compliant: Yes.
  • Applications: Board mount applications.
