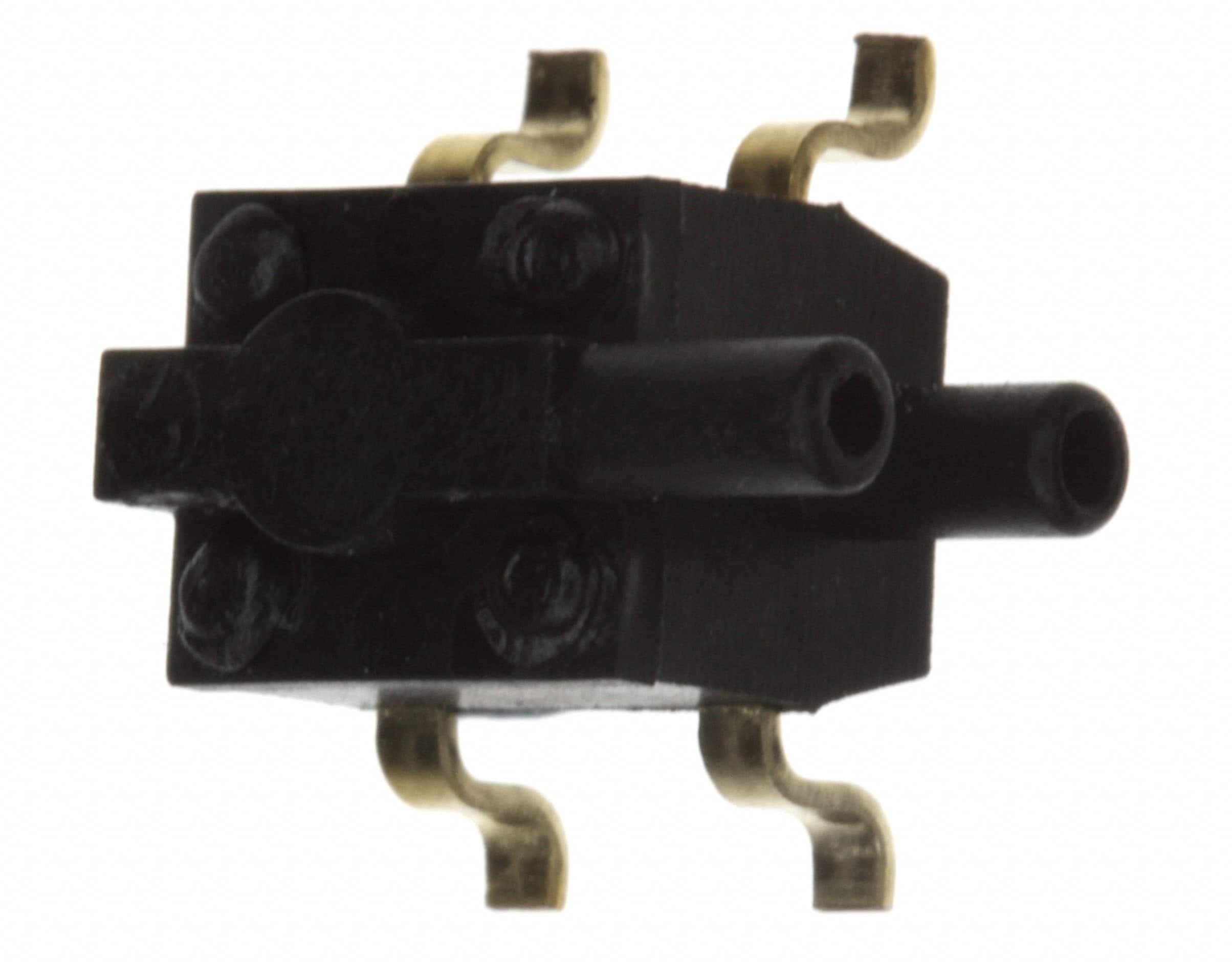

Same model may have multiple batches, images only for reference.
26PC05SMT
Same model may have multiple batches, images only for reference.

26PC05SMT

Part No 26PC05SMT
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSIC 0.07" .05V
Datasheet
26PC05SMT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC SMT
Package Tube
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±5PSI (±34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV (10V)
Accuracy ±1.5%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.07" (1.88mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style Gull Wing
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD Module
Base Product Number 26PC05
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 854849-26PC05SMT
Ultra Librarian 3D Model Ultra Librarian 26PC05SMT CAD Model

Description

The Honeywell 26PC05SMT is a pressure sensor. It is manufactured by Honeywell.

  • Category: Sensors, Transducers - Pressure Sensors, Transducers
  • Series: 26PC SMT
  • Termination Style: Gull-Wing
  • Mounting Type: Board Mount
  • Package: Tube
  • Standard Package: 50 Pieces
  • Output Configuration: Wheatstone Bridge
  • Output Voltage Range: 0mV to 50mV (10V)
  • Accuracy: ±1.5%
  • Pressure Type: Compound
  • Maximum Pressure: ±20PSI (±137.9kPa)
  • Voltage Supply: 2.5V to 16V
  • Operating Temperature: -40°C to 85°C
