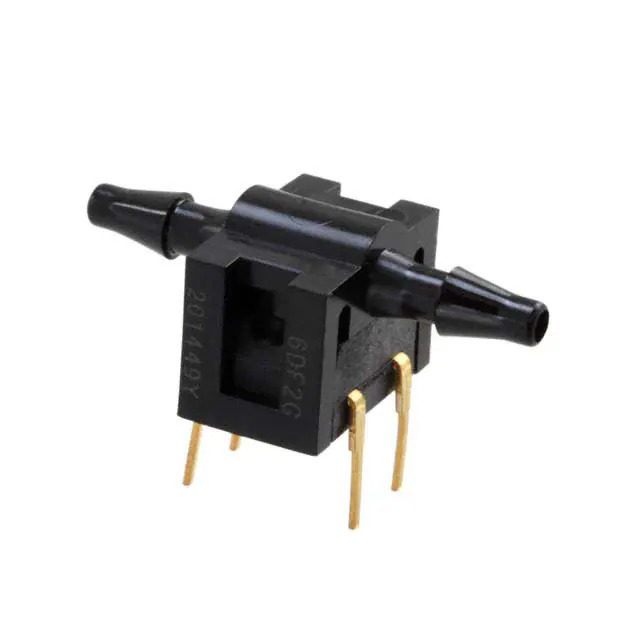

26PCDFG2G Honeywell
Same model may have multiple batches, images only for reference.

26PCDFG2G

Part No 26PCDFG2G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSIC 0.14" 0.1V / Pressure Sensor ±30PSI (±206.84kPa) Compound Male - 0.14" (3.56mm) Tube 0 mV ~ 100 mV (10V) 4-SIP Module
Datasheet
26PCDFG2G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series 26PC
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±30PSI (±206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.2%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.14" (3.56mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±60PSI (±413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Supplier Device Package -
Base Product Number 26PCDFG
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1352822-26PCDFG2G
Ultra Librarian 3D Model Ultra Librarian 26PCDFG2G CAD Model

Description

The Honeywell Sensing and Productivity Solutions 26PCDFG2G series pressure sensor is a versatile component for measuring pressure in various applications from Honeywell Sensing and Productivity Solutions.

  • Operating Temperature: -40°C to 85°C
  • Pressure Type: Compound
  • Operating Pressure Range: ±30PSI (±206.84kPa)
  • Port Size: 0.14" (3.56mm) tube
  • Port Style: Barbed
  • Voltage Supply Range: 2.5V to 16V
  • Output Signal: 0mV to 100mV (10V)
  • Accuracy: ±0.2%
  • Mounting Type: Board Mount
  • Package: 4-SIP Module
  • Product Status: Active
