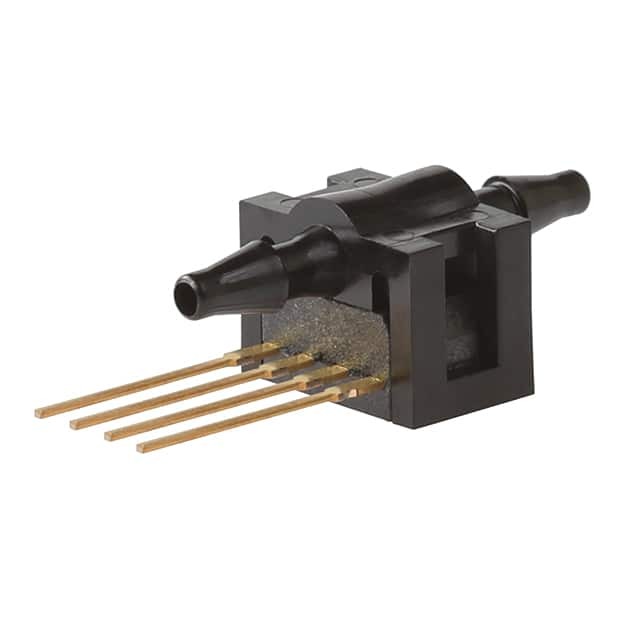

Same model may have multiple batches, images only for reference.
26PCDFG6G
Same model may have multiple batches, images only for reference.

26PCDFG6G

Part No 26PCDFG6G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSIC 0.14" 0.1V / Pressure Sensor ±30PSI (±206.84kPa) Compound Male - 0.14" (3.56mm) Tube 0 mV ~ 100 mV (10V) 4-SIP Module
Datasheet
26PCDFG6G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±30PSI (±206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.2%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.14" (3.56mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±60PSI (±413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number 26PCDFG
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 906108-26PCDFG6G
Ultra Librarian 3D Model Ultra Librarian 26PCDFG6G CAD Model

Description

The Honeywell pressure sensor, part number 906108-26PCDFG6G, is a high-performance sensor used for pressure measurement applications.

  • Series: 26PC
  • Termination Style: PC pin
  • Feature: Temperature compensated
  • Package: Bulk
  • Standard Package: 25 pieces
  • Output Type: Wheatstone bridge
  • Output Range: 0mV to 100mV
  • Voltage Supply: 2.5V to 16V
  • Accuracy: ±0.2%
  • Pressure Type: Compound
  • Pressure Range: ±30PSI (±206.84kPa)
  • Port Size: 0.14 inches (3.56mm) (male)
  • Port Style: Barbed
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • MSL Level: 1 (unlimited)
  • Mounting Type: Through-hole
