Same model may have multiple batches, images only for reference.

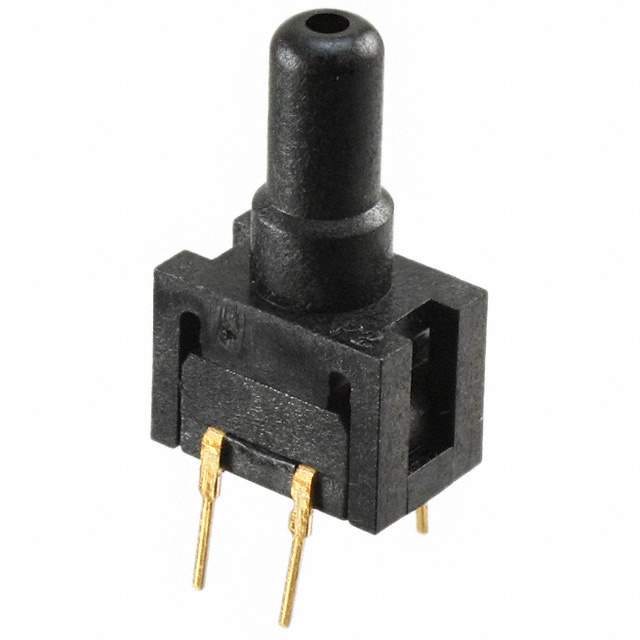

26PCFFA2G Real Image
Same model may have multiple batches, images only for reference.

26PCFFA2G

Part No 26PCFFA2G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR DIFFERENTIAL +-100 PSI / Pressure Sensor ±100PSI (±689.48kPa) Compound Male - 0.2" (5.08mm) Tube 0 mV ~ 100 mV (10V) 4-DIP Module
Datasheet
26PCFFA2G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Applications Board Mount
Pressure Type Compound
Operating Pressure ±100PSI (±689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.6%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.2" (5.08mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±200PSI (±1378.95kPa)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 4-DIP Module
Base Product Number 26PCFFA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 480-4169,2266-26PCFFA2G,26PCFFA2G-ND
Standard Package 25
Win Source Part Number 1336500-26PCFFA2G
Ultra Librarian 3D Model Ultra Librarian 26PCFFA2G CAD Model

Description

The Honeywell 26PCFFA2G pressure sensor is a temperature compensated sensor that is ideal for board mounting applications.

  • Output Type: Wheatstone bridge
  • Pressure Type: compound
  • Operating Pressure Range: ±100PSI (±689.48kPa)
  • Maximum Pressure: ±200PSI (±1378.95kPa)
  • Port Size: 0.2" (5.08mm)
  • Port Style: barbless
  • Voltage Supply Range: 2.5V ~ 16V
  • Operating Temperature: -40°C ~ 85°C
  • Package: 4-DIP module
  • RoHS Compliant: Yes
  • Accuracy: ±0.6%
