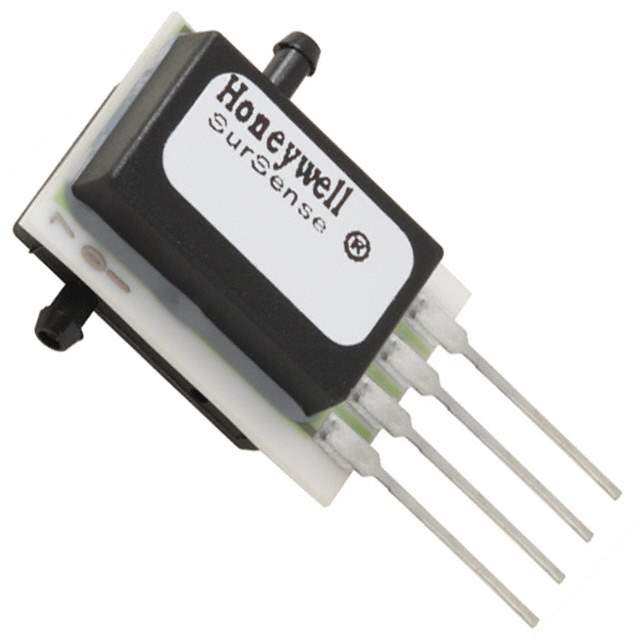

DUXL05D Real Image
Same model may have multiple batches, images only for reference.

DUXL05D

Part No DUXL05D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE DIFF 5" H2O 4SIP  /  Pressure Sensor 0.18PSI (1.25kPa) Differential Male - 0.08" (2.03mm) Tube, Dual 0 mV ~ 22.5 mV (4.5V) 4-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series DUXL
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 0.18PSI (1.25kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 22.5 mV (4.5V)
Accuracy ±0.5%
Voltage - Supply 3V ~ 8V
Port Size Male - 0.08" (2.03mm) Tube, Dual
Port Style Barbed
Termination Style PC Pin
Maximum Pressure 3.61PSI (24.92kPa)
Temperature Range - Operating -25°C ~ 85°C
Package / Case 4-SIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-2667-5
Standard Package 5
Win Source Part Number 1222245-DUXL05D
Ultra Librarian 3D Model Ultra Librarian DUXL05D CAD Model

Description

The DUXL05D is a differential pressure sensor from Honeywell that operates on the Wheatstone bridge principle.

  • Sensor Type: Differential Pressure
  • Technology: Wheatstone Bridge
  • Sensing Range: 0.18PSI
  • Maximum Pressure: 3.61PSI
  • Package: 4-SIP Module
  • Standard Package: 5
  • Operating Temperature: -25°C to 85°C
  • Product Status: Obsolete
  • ECCN: EAR99
