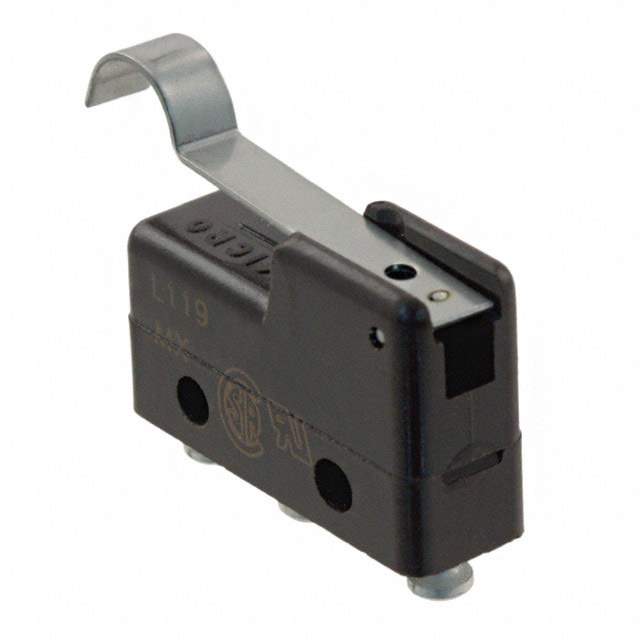

311SM704-T Real Image
Same model may have multiple batches, images only for reference.

311SM704-T

Part No 311SM704-T
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 4A 250V / Switch SPDT Chassis Mount
Datasheet
311SM704-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SM
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 4A (AC), 5A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Turret
Operating Force 16gf
Release Force 3.059gf
Pretravel 0.085" (2.16mm)
Differential Travel 0.013" (0.33mm)
Overtravel 0.018" (0.45mm)
Temperature Range - Operating -55°C ~ 125°C
Operating Position 0.460" (11.7mm)
Mechanical Life 10,000,000 Cycles
Base Product Number 311SM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names 311SM704T,480-3020
Standard Package 100
Win Source Part Number 1206222-311SM704-T
Ultra Librarian 3D Model Ultra Librarian 311SM704-T CAD Model

Description

The Honeywell Sensing and Productivity Solutions 311SM704-T is a limit switch that is currently active in the market.

  • Switch Type: Single Pole Double Throw (SPDT)
  • Voltage Rating: 250V AC
  • Voltage Rating: 30V DC
